Precise cuts in various materials

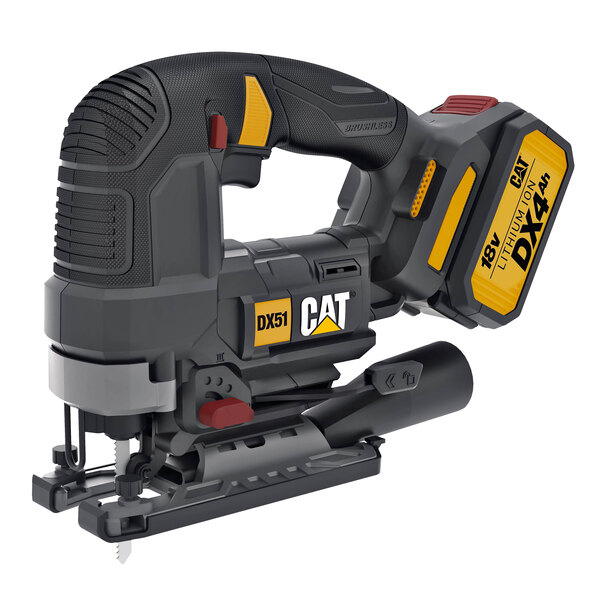

The 18V CAT DX51B jigsaw is suitable for precise cuts in wood, plastic, and steel. Thanks to its brushless motor and variable stroke rate, it can be adjusted to different materials. The tool-free blade change system and adjustable aluminum base ensure comfortable handling, while the 4-stage pendulum adjustment optimizes cut quality.

CAUTION: Please observe the safety instructions in the user manual.

Features:

• Rated voltage: 18V
• No-load stroke rate: 0–3,500/min
• Aluminum base
• Stroke length: approx. 2.6 cm
• Max. cutting depth in plastic: approx. 2 cm
• Max. Cutting depth in wood: approx. 12 cm
• Max. cutting depth in steel: approx. 1 cm
• Brushless motor
• Variable stroke rate
• Tool-free adjustment of the aluminum base
• 4-stage pendulum adjustment
• Tool-free blade change system
• Rubber-coated handle
• SDS adjustable base for angle cuts
• Lock switch prevents accidental starting

Dimensions/Weight:

• Approx. 29 x 11.8 x 19.5 cm
• Approx. 1.9 kg

Scope of delivery:

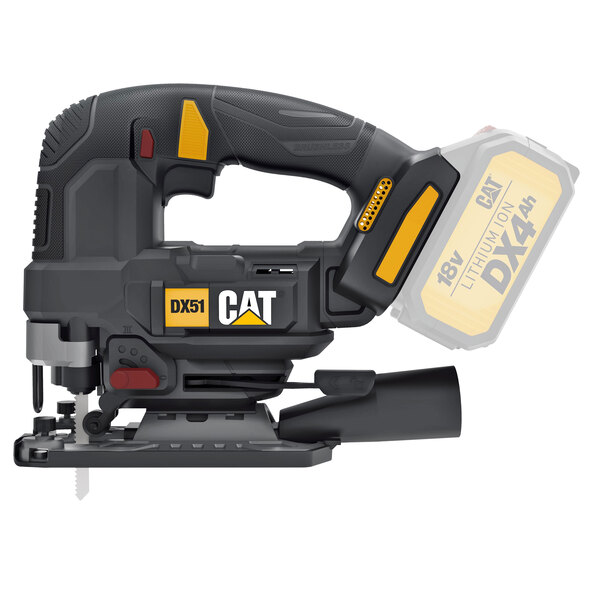

• CAT 18 V jigsaw, DX51B without battery and charger
• Parallel guide
• Dust extraction adapter
• Wood blade
• Aluminum base cover
• Instruction manual

CAUTION: Please observe the safety instructions in the instruction manual.
