Your own solar power plant for your home

With the bifacial balcony power plant from EET, you can directly use solar energy and cover your household electricity consumption. The two solar modules with a total of 860 Wp and the integrated 1.44 kWh energy storage system allow you to store and use energy even during power outages. Thanks to plug & play technology, installation is quick and easy. The metering technology adapts the use of solar power to your needs, thereby reducing electricity consumption from the grid.

Features:

• Two monocrystalline full black bifacial solar modules, each with a power output of 430 Wp (total 860 Wp)
• Up to 30% more power by utilizing sunlight on both sides
• Solar module efficiency: 22.28%
• Inverter efficiency: 96.8%
• PV power: up to 2,000 Wp
• Input power: up to 1,200 W
• PV input: 2 x XT60 (max. 44 V / 20 A)
• Energy storage with a capacity of 1.44 kWh / 30 Ah
• Storage technology: LiFePO4 (Lithium iron phosphate battery)
• Designed for 6,000 full charge cycles
• Voltage: 48 V
• Power in mains operation: 800 W (1 phase)
• Power in off-grid operation: 1,000 W
• AC output: IEC 60320 C20
• Operating temperature range: -10 to +60 °C
• Emergency power supply for power outages or as an off-grid solution
• Intelligent metering technology for adapting to power consumption up to 800 W
• Easy installation thanks to plug & play system
• Compact all-in-one design with integrated battery and inverters
• Connection via mains socket possible

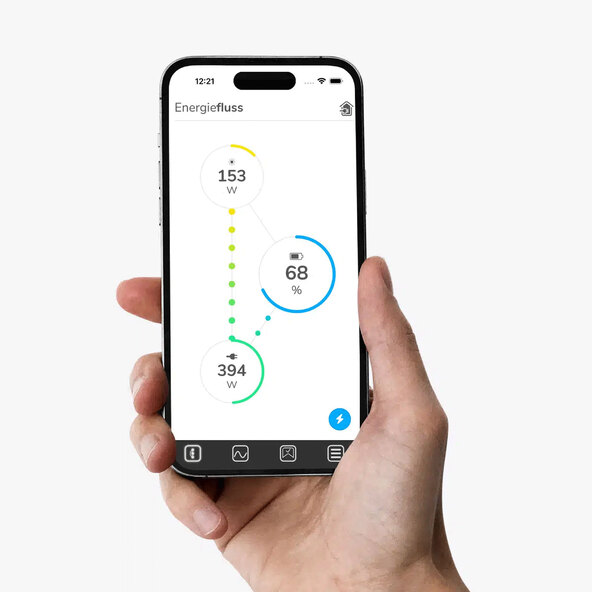

• Control and monitoring via the mySolMate App

Dimensions/Weight:

• Storage: approx. 73.0 x 49.8 x 10.0 cm
• Approx. 28 kg
• Solar module: approx. 173.3 x 113.4 x 3.0 cm
• Approx. 24 kg

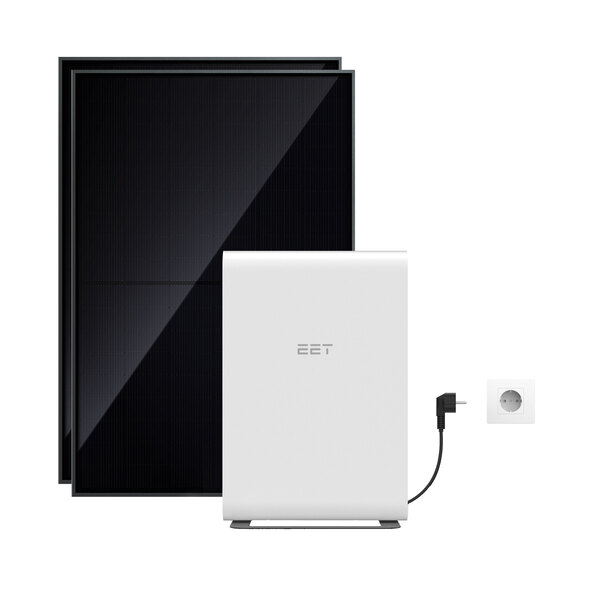

Scope of delivery:

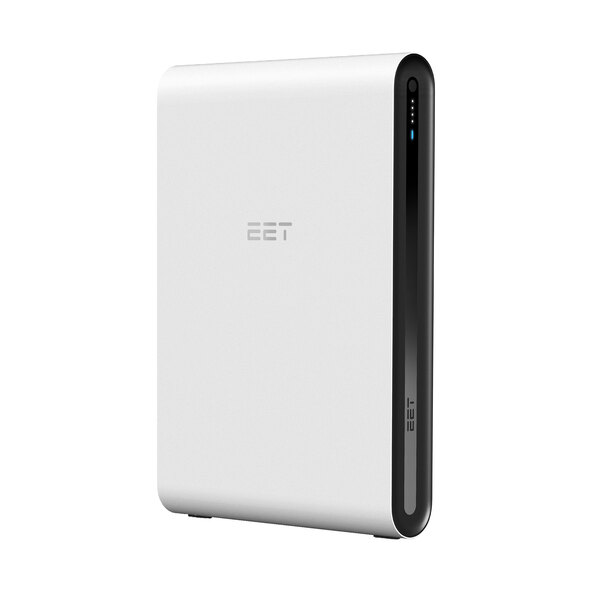

• EET Bifacial Balcony Power Plant with Energy Storage
• 2 x Solar Modules

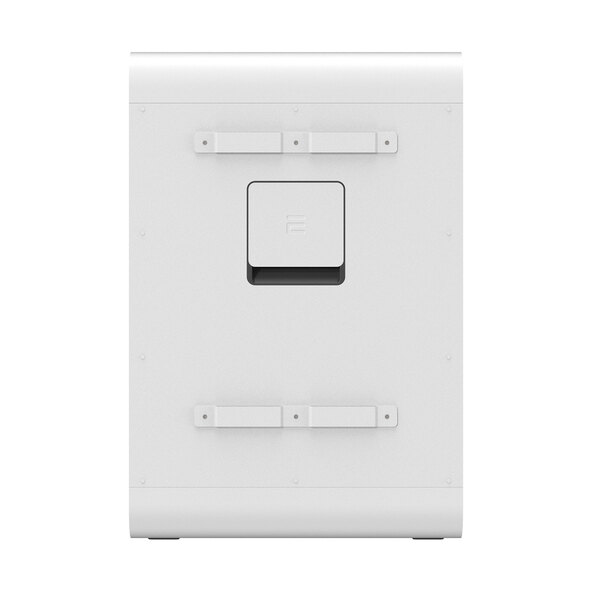

• Storage with stand and wall mount
• Adapter and cables for the solar modules
• Operating instructions
