Precision in Woodworking

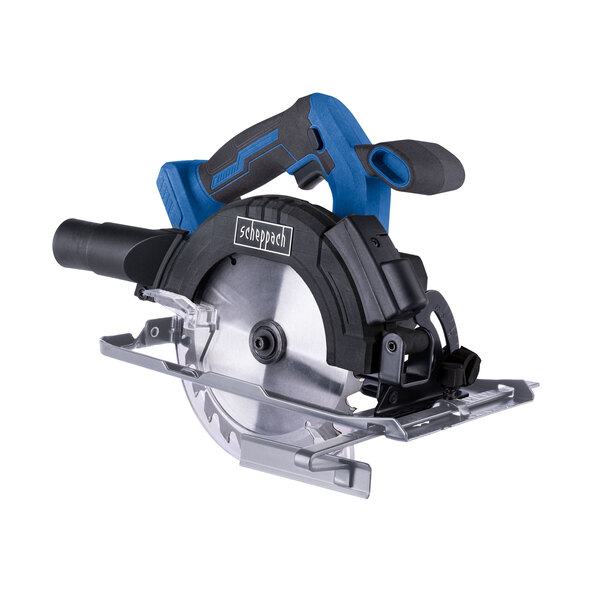

The Scheppach C-HCS165-X cordless circular saw impresses with its precision and flexibility in woodworking. With the ability to continuously adjust the cutting depth and angle, it allows you to implement your projects exactly as you envision them. The integrated laser and LED work light ensure optimal visibility of your cutting line, while the easy blade change with spindle lock simplifies your work. As part of the Scheppach IXES 20-volt series, it is compatible with all batteries and chargers in the series, offering you maximum flexibility in your workshop.

Features:

• Powerful cordless circular saw for precise wood cutting
• For standard saw blades with approx. Ø 165 mm x Ø 20 mm
• Pendulum guard with retraction lever
• Easy blade change with spindle lock
• Integrated laser and LED work light ensure optimal illumination of the cutting line

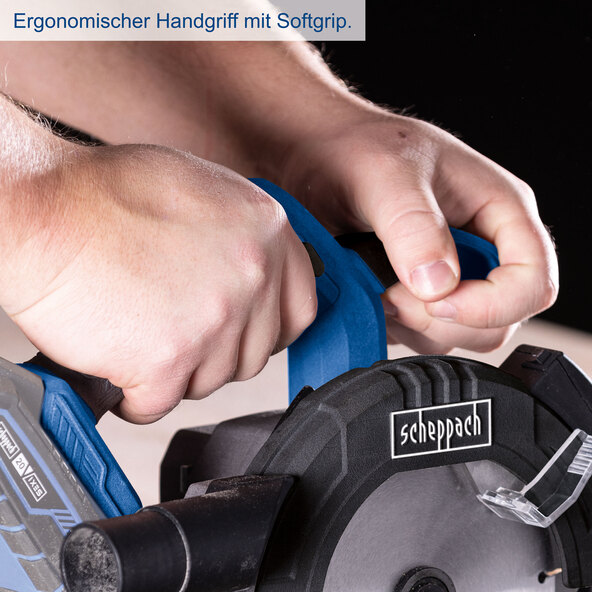

• Compact design with soft-grip surface
• Parallel guide enables particularly precise cuts
• On/off switch with quick-stop for fast blade stopping
• Safety switch operable from both sides with Switch-on lock

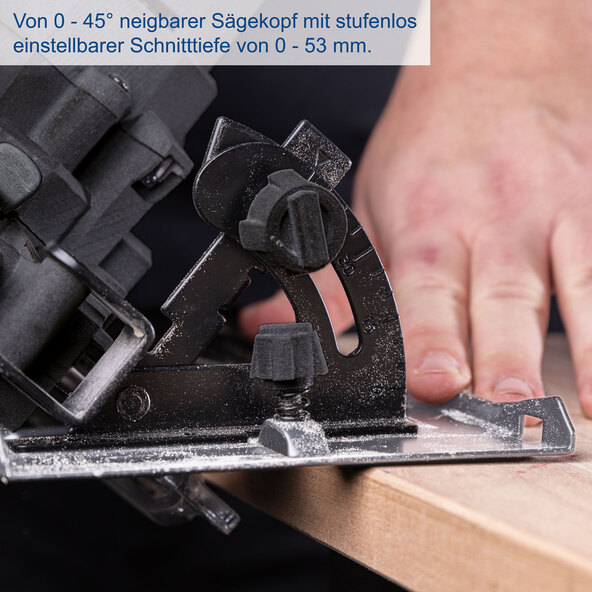

• Cutting depth and angle infinitely adjustable
• Integrated soft start and overload protection
• Dust-free operation thanks to dust extraction connection
• Cutting height: max. 53 mm at 90°, max. 39 mm at 45°
• Swivel range: max. 45°
• Number of saw blade teeth: 24
• Saw blade speed: 4,300 rpm
• Motor type: Brushed motor
• Battery voltage: 20 V
• Approx. 165 mm diameter saw blade with 24 teeth, Allen key, parallel guide, connection for external dust extraction, extraction adapter
• Cordless operation: compatible with all Scheppach IXES batteries and chargers 20-volt series

Dimensions/weight:

• L x W x H: approx. 29.5 x 18 x 20 cm
• Approx. 1.8 kg

Scope of delivery:

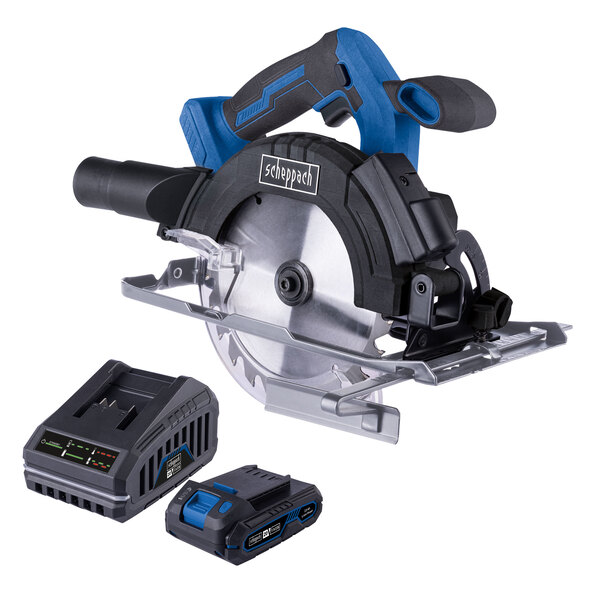

• Scheppach cordless circular saw C-HCS-165-X, 165 mm, incl. 2.0 Ah battery and charger
• 1 x saw blade
• 1 x dust extraction adapter
• 1 x reducer
• 1 x Phillips screw
• 1 x spring washer
• 1 x washer
• 1 x Allen key
• 1 x parallel guide
• 1 x cordless circular saw
• Instruction manual

ATTENTION: Please observe the safety instructions in the instruction manual.
