Practical cladding in an elegant design

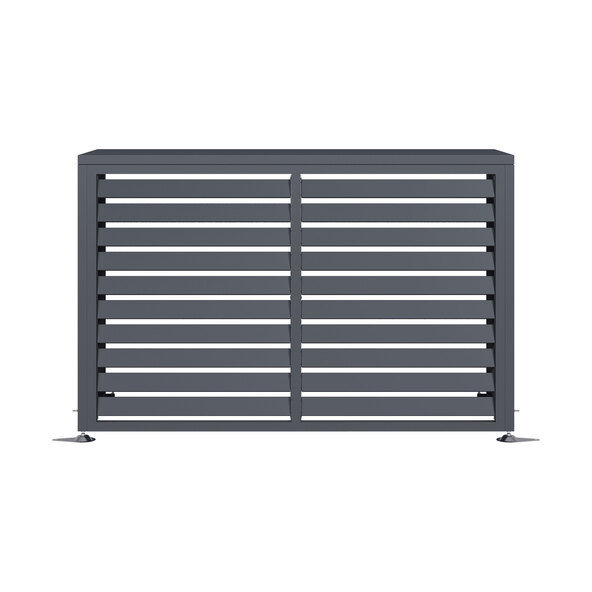

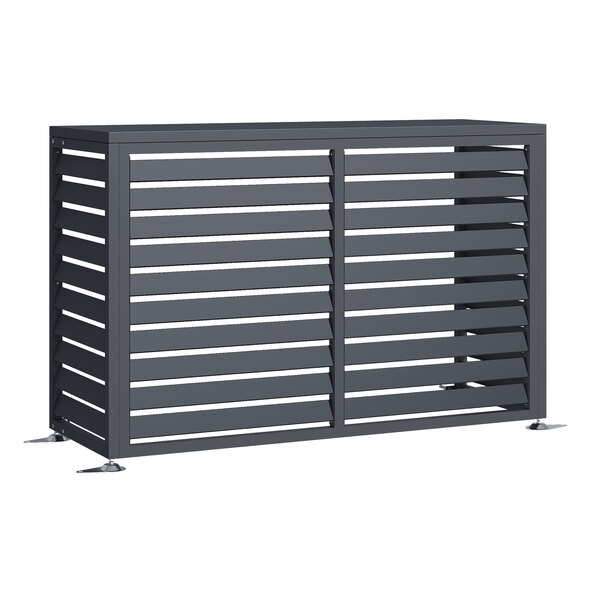

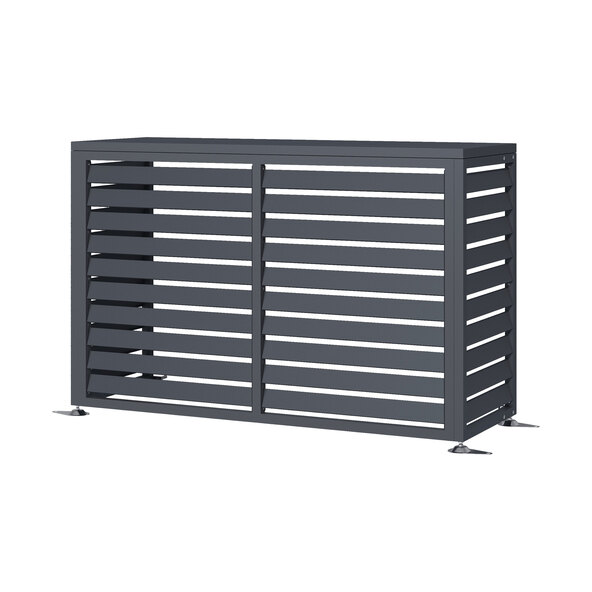

The elephant® heat pump cladding, made of approximately 1 mm thick sheet steel, offers efficient air circulation thanks to its well-designed louvered structure. This cladding is suitable for both floor and wall mounting and is available in anthracite. The powder coating contributes to weather resistance, and prefabricated parts make assembly quick and easy.

ATTENTION: Please observe the safety instructions in the operating manual.

Features:

• Stable, weather-resistant sheet steel construction (approx. 1 mm thick)
• Powder-coated
• RAL color 7016 – Anthracite (UV-stable)
• Engineered louver structure for good supply and exhaust air to the heat pump
• Lightweight and easy to clean

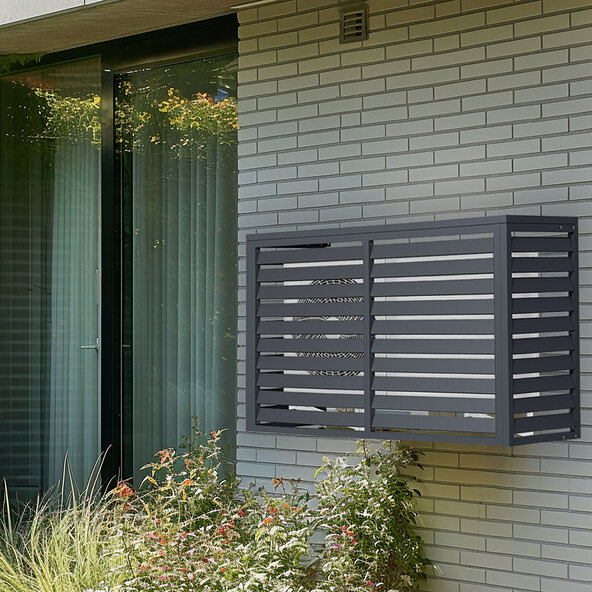

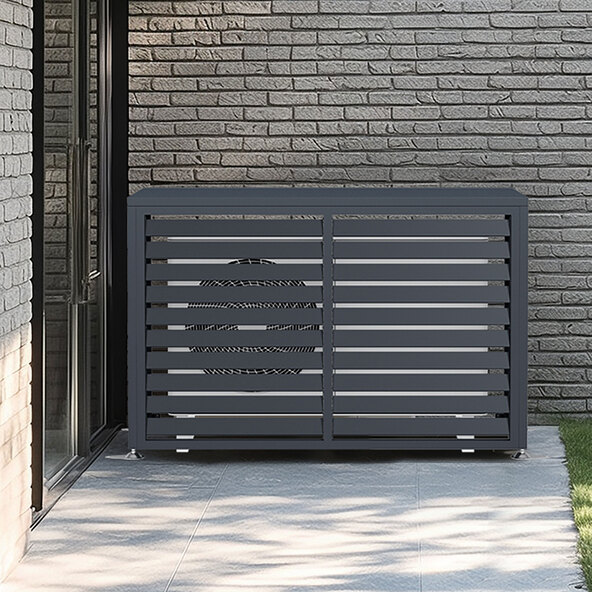

• Floor or wall mounting possible
• Simple and quick assembly thanks to prefabricated elements
• Optimal air supply and circulation

Dimensions/Weight:

• For floor mounting (with height-adjustable feet): Internal dimensions for heat pump: approx. 134 x 47 x 89-94 cm External dimensions: approx. 140 x 50 x 92-97 cm For wall mounting (with adjustable wall spacers): Internal dimensions for heat pump: approx. 134 x 47-53 x 85.5 cm External dimensions: approx. 140 x 50-56 x 88.5 cm 29 kg

Scope of delivery:

• elephant® heat pump casing
• Laminated front and side panels made of anthracite-colored sheet steel (RAL 7016)
• Connectors, screws, corner pieces, adjustable feet and alternative wall brackets (both adjustable)
• Mounting screws and cover

Assembly instructions
