I

Features:

• Attractive-looking fronts
• Plenty of storage space
• Individually configurable
• Including Electrical appliances
• Color: Wotan/Wotan
• Semi-integrated dishwasher
  • Front: silver
  • Space for 12 place settings
  • Delay start: 1–24 hours
  • Aqua-Stop function
  • Power: 1,950 W
  • Cleaning temperatures: 45 / 50 / 55 / 60 / 65 °C
  • Standard cleaning cycle duration: approx. 230 minutes
  • 6 programs: ECO, Glass, 90 min, Quick, Intensive, Universal
  • Height-adjustable feet
  • 2 spray levels
  • Cutlery basket
• Built-in oven set
  • Stainless steel panel
  • Glass ceramic cooktop
  • 3 oven functions: top heat, bottom heat, top and bottom heat
  • Housing cooling
  • 4 cooking zones
  • Ø Cooking zone front left: approx. 18 cm
  • Ø Cooking zone rear left: approx. 14 cm
  • Ø Cooking zone front right: approx. 14 cm
  • Ø Cooking zone rear right: approx. 18 cm
  • Power cooking zone front left: approx. 1,800 W
  • Power cooking zone rear left: approx. 1,200 W
  • Power cooking zone front right: approx. 1,200 W
  • Power cooking zone rear right: approx. 1,800 W
  • Max. Power: 8,350 W Usable oven volume: approx. 59 l Oven door: black glass Extractor hood LED lighting 3 power levels Stainless steel housing Carbon filter CF130 Recirculation diverter AT 150-4 Installation width: approx. 60 cm Wall mounting 5 push buttons Airflow at minimum speed: approx. 222 m³/h Airflow at maximum speed: approx. 348 m³/h Aluminum grease filter Telescopic chimney, extendable: approx. 40–78 cm cm
  • Total height with telescopic chimney: approx. 96 cm
• Refrigerator
  • LED lighting
  • 3-star compartment
  • 88 cm niche
  • Net capacity: approx. 116 l
  • Net capacity cooling: approx. 101 l
  • Net capacity freezing: approx. 15 l
  • Max. Storage time in case of malfunctions: 8 hours
  • Refrigerant: R600a
  • 1 vegetable drawer with glass cover
  • 1 glass shelf in the refrigerator compartment
  • 3 door shelves
  • 1 egg tray
  • 1 freezer compartment door

Dimensions/Weight:

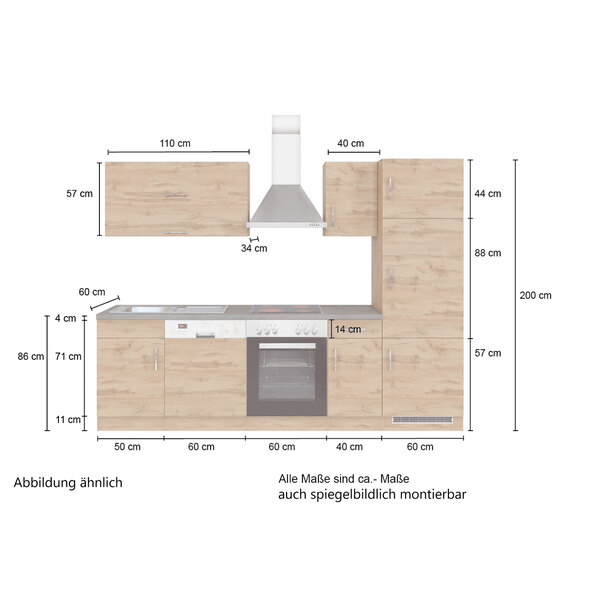

• W x H x D: approx. 270 x 200 x 60 cm
• Approx. 311.2 kg
• Dishwasher, W x H x D: approx. 59.8 x 81.5 x 57 cm
• Approx. 26 kg
• Oven, W x H x D: approx. 59.5 x 59.5 x 50 cm
• Approx. 27 kg
• Hob, W x H x D: approx. 58 x 5 x 51 cm
• Approx. 8 kg
• Extractor hood, W x H x D: 60 x 58-96 x 47.50 cm
• Approx. 6.7 kg
• Refrigerator, W x H x D: approx. 54 x 88 x 54.5 cm
• Approx. 29 kg

Scope of delivery:

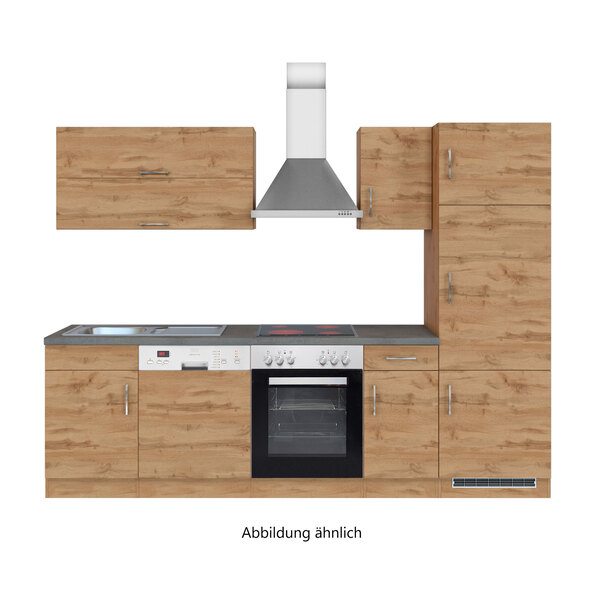

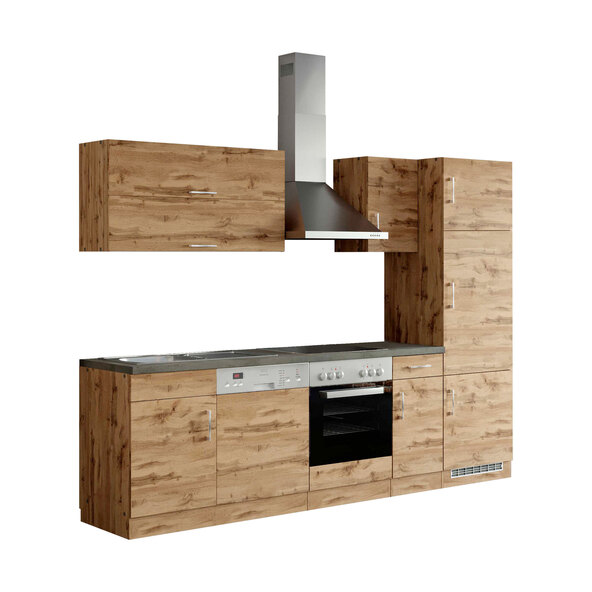

• Porto kitchen unit Held Möbel, 270 cm, Wotan/Wotan
• Dishwasher, semi-integrated
• Built-in oven set
• Extractor hood
• Refrigerator
• Assembly and operating instructions
