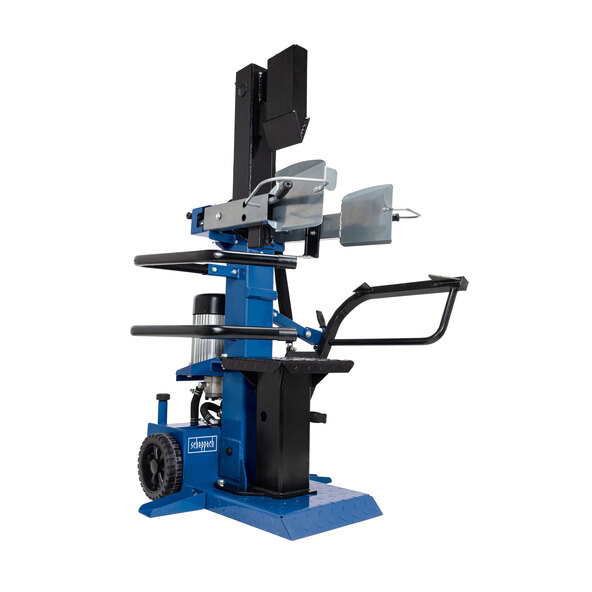

Practical log splitter for versatile applications

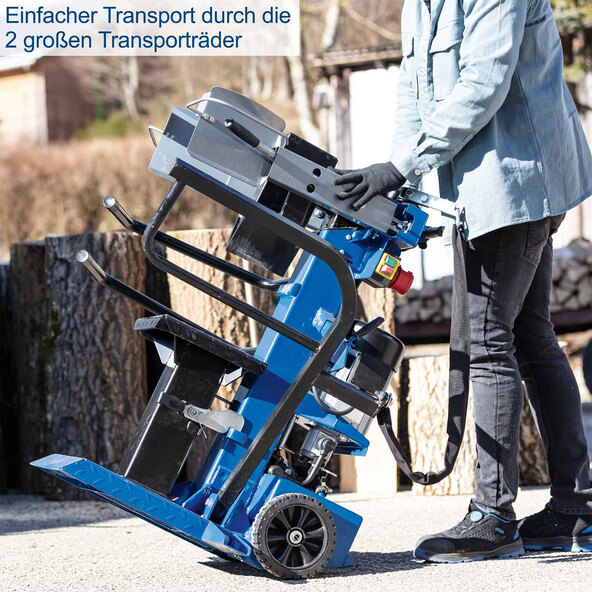

The Compact 10 log splitter offers a powerful splitting force of approximately 10 tons. Thanks to its compact design, with a height of only about 102 cm when retracted, it is easy to store. The splitter effortlessly processes hardwood and softwood up to 107 cm long and with a maximum diameter of 38 cm. The patented splitting mechanism and the swiveling table enable particularly fast work. Equipped with a 3,500-watt motor and two large transport wheels, the splitter is easy to move.

Features:

• Splits hardwood and softwood
• Max. log length: approx. 107 cm

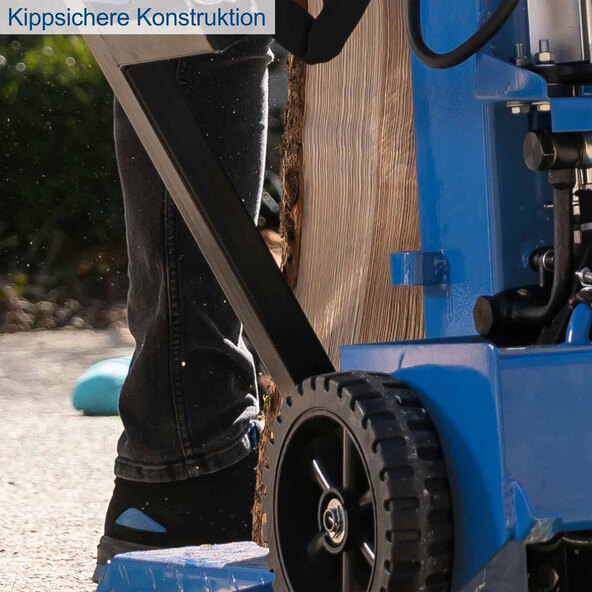

• Max. Log diameter: approx. 38 cm Splitting force: approx. 10 t Patented splitting technology GS certified Integrated motor with approx. 3,500 W power Requires a 400 volt power connection Swiveling table for fast work Torsionally rigid construction prevents tipping Catching bar and log lifter Vario splitting system Includes 2 transport wheels Dimensions/Weight: Height when retracted: approx. 102 cm L x W x H: approx. 76 x 42.5 x 115 cm Approx. 143.80 kg

Scope of delivery:

• SCHEPPACH wood splitter Compact 10
• 1 x chain hook
• 1 x chain
• 2 x operating arms
• 1 x transport lever
• 1 x lever

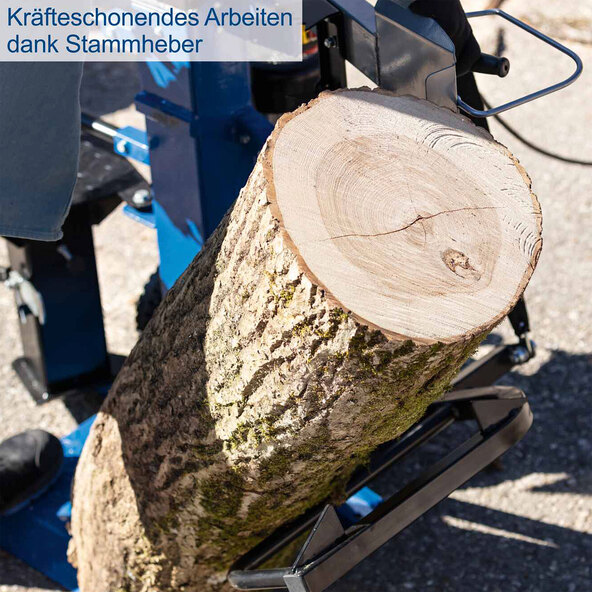

• 1 x log lifter
• 2 x transport wheels
• 2 x supports
• 2 x protective bracket
• 2 x retaining claw
• 2 x hexagon screws M12 x 40mm
• 1 x hexagon screws M10 x 55mm
• 2 x hexagon screws M8 x 55mm
• 1 x hexagon screws M12 x 70mm
• 1 x hexagon screws M10 x 40mm
• 1x Wheel axle
• 4 x washers
• 2 x cotter pins
• 2 x wheel caps
• 4 x M10 x 25mm hex bolts
• 4 x M8 x 50mm hex bolts
• 1 x 5mm Allen key
• Operating instructions
