Log splitter for hardwood and softwood

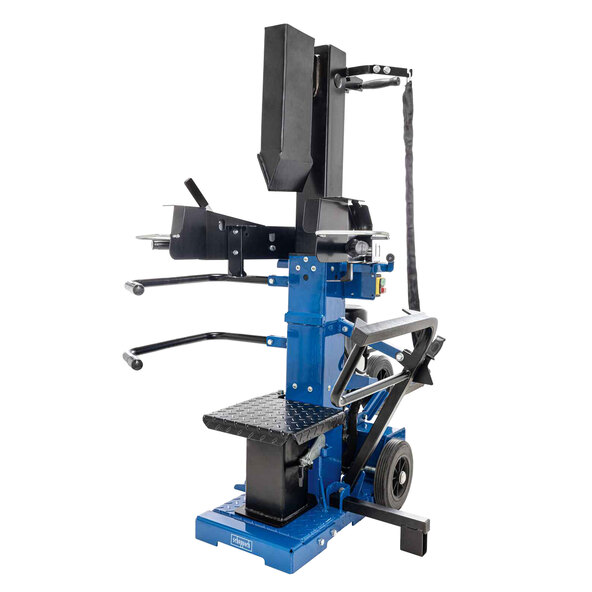

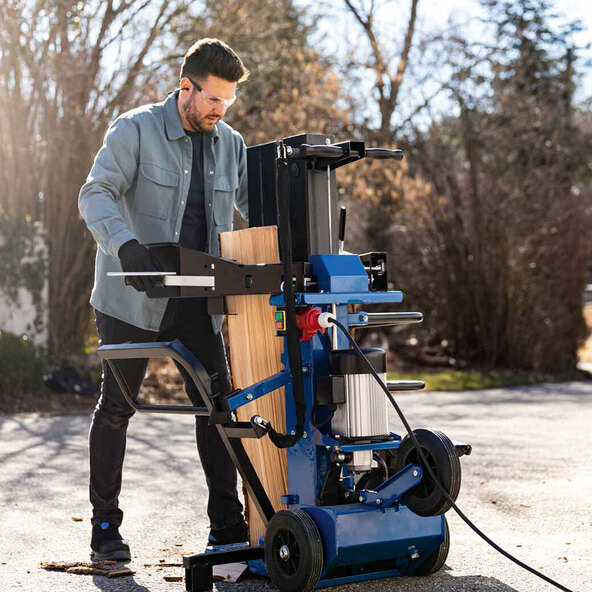

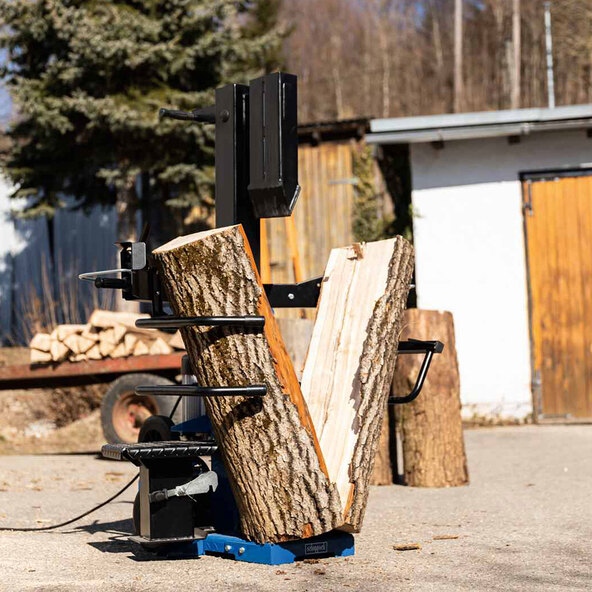

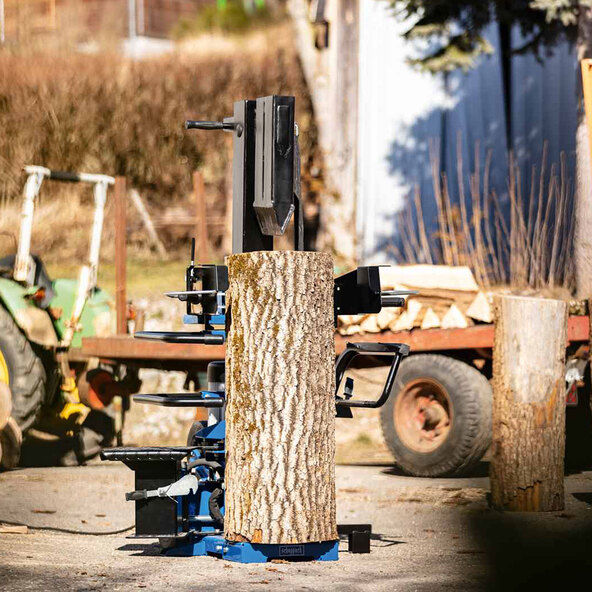

The SCHEPPACH Compact 15 log splitter offers a splitting force of 15 t and processes hardwood and softwood up to a length of approx. 107 cm and a diameter of approx. 45 cm. The 3,500 W motor enables efficient work. Thanks to its compact design with a machine height of only approx. 110 cm when retracted, the splitter can be stored in a space-saving manner. The swiveling table allows working at two different heights, while the Vario splitting system ensures optimal flexibility. A log catch and log lifter also offer greater comfort during operation.

ATTENTION: Please observe the safety instructions in the operating manual.

Features:

• Splitting force: max. 15 t
• Max. Log dimensions, L x Ø: approx. 107 x 45 cm
• Suitable for hardwood and softwood
• Motor power: 3,500 W
• 3 large transport wheels

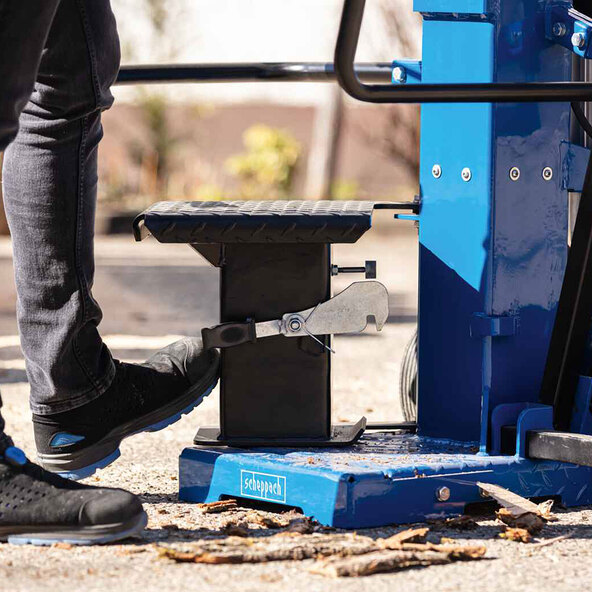

• Swivel table for two working heights
• Torsion-resistant, stable construction
• Vario splitting system
• GS certified
• Patented splitting technology
• Compact design for easy storage

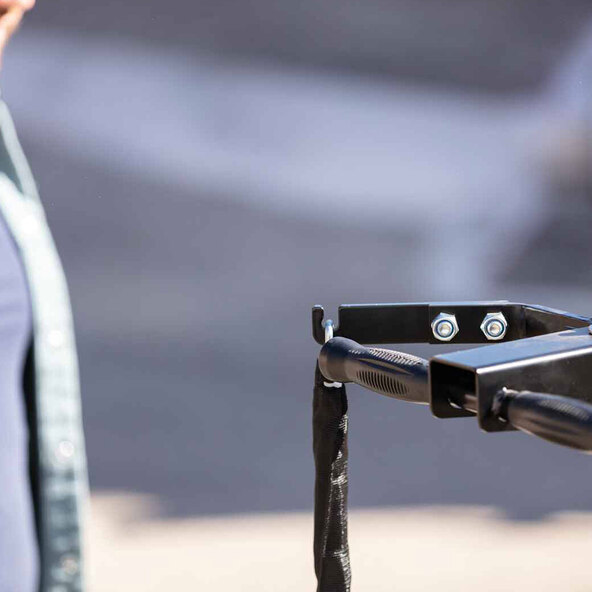

• Two-hand operation

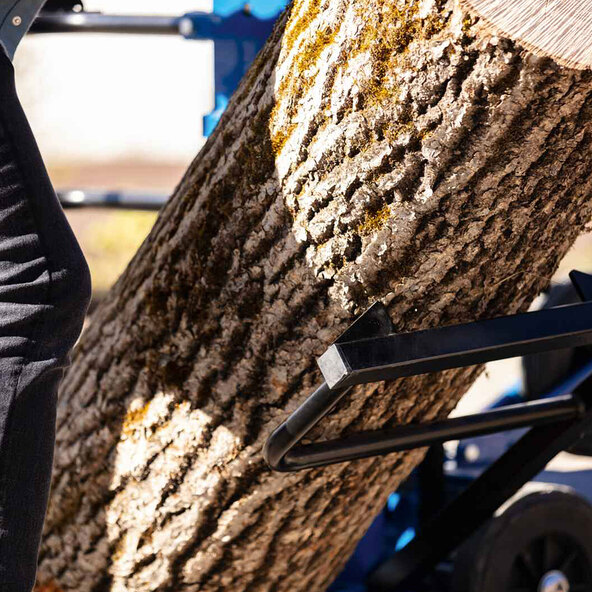

• Catching bar and log lifter
• Logs can be processed at floor or table height

Dimensions/Weight:

• L x W x H: approx. 76 x 43.5 x 124 cm
• Gap wedge: approx. 19 x 8.5 cm
• Retracted height: approx. 110 cm
• Swivel table, height: approx. 32 cm
• Working height: approx. 92 cm
• Approx. 197.8 kg

Scope of delivery:

• SCHEPPACH Compact 15 log splitter
• 1 x right-hand operating arm
• 1 x left-hand operating arm
• 2 x holding claw
• 1 x log lifter
• 1 x log lifter support
• 1 x support
• 2 x transport wheels
• 2 x protective bars
• 1 x chain hook
• 1 x support wheel
• 1 x log lifter locking mechanism
• 1 x lever
• 1 x chain
• 2 x stiffening plates
• 1 x wheel axle
• 4 x washers (ø 25 mm)
• 2 x wheel caps
• 1 x bushing 2 x Washers M12 1 x Hex Socket Screw M6 x 10 mm 1 x Hex Screw M12 x 70 mm 4 x Hex Screw M8 x 50 mm 1 x Hex Screw M12 x 85 mm 1 x Hex Screw M8 x 55 mm 2 x Hex Screw M8 x 55 mm 3 x Hex Screw M12 x 40 mm 8 x Hex Screw M10 x 25 mm Operating Instructions ATTENTION: Please observe the safety instructions in the operating manual.
