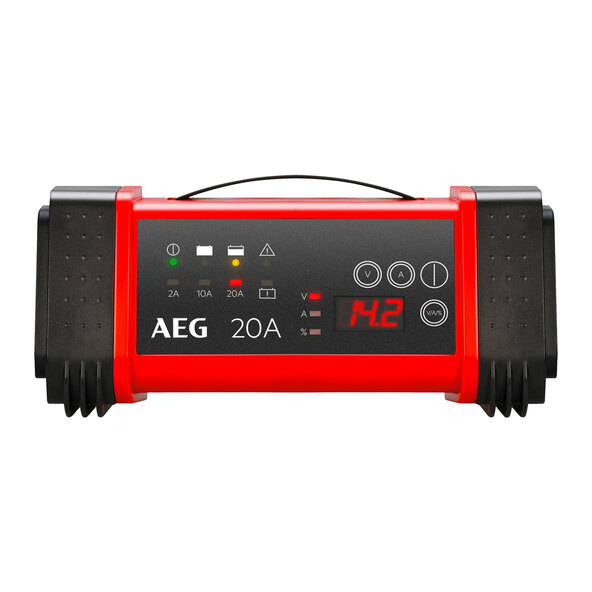

Intelligent care for your vehicle battery. Whether for cars, motorcycles, trucks, or tractors: The AEG microprocessor charger revives even deeply discharged batteries. With an intelligent 9-stage charging cycle, it charges all common 12V and 24V vehicle batteries quickly and gently. The device is also suitable for sensitive vehicle electronics. The integrated microprocessor enables fully automatic diagnostic, recovery, charging, and maintenance functions. You can conveniently connect the charger to the built-in battery via the convenient connection; removal is not necessary. If you do need to remove the battery, the charger's power supply function keeps the vehicle electronics running during the process. The LED display informs you about the charging progress, charging current, voltage, and any error messages. Thanks to comprehensive protection features, the AEG micro charger is easy and convenient to use.
CAUTION: Please observe the safety instructions in the operating manual.
Features:
- Battery charger
- For all common 12V and 24V automotive batteries
- Intelligent 9-stage charging cycle
- MCU (Microcomputer Unit) microprocessor
- Fully automatic diagnostic, recovery, charging, and maintenance functions
- Battery-friendly soft charging function for sensitive vehicle electronics
- Recovery function for deeply discharged batteries
- Convenient connection
- User-friendly: No need to remove the battery
- Constant power supply when the battery is removed
- Ambient temperature controlled Charging characteristic curve
- All-weather functionality
- LED indicators & LED display (charging progress in %, error, charging current, volts)
- Overcharge, short-circuit, overheat, reverse polarity protection as well as spark and electronics protection
- Practical terminal storage
Technical data:
- Operating voltage: 230 V AC
- Input current: max. 3 A
- Output voltage: 12 V DC / 24 V DC
- Charging voltage: max. 14.7 V / 29.4 V
- Effective charging current: 20 A
- Recommended battery capacity: 2–200 Ah
- Charging time: approx. 8 hours (with 60 Ah battery)
- Protection class: Ambient temperature: -20 °C to +40 °C Dimensions/Weight: L x W x H: approx. 27.5 x 15.6 x 12.5 cm Approx. 1.38 kg Scope of delivery: AEG Micro Charger LT, 20 Amp, LED display Instruction manual
