Provides a clear view

Whatever object you want to examine with your Bresser microscope, with four objectives that enable a wide magnification range, an interchangeable pair of eyepieces, and dimmable LED illumination, you'll see every specimen in the right light.

• Solid metal body
• Height-adjustable, centerable Abbe condenser with iris diaphragm
• Coarse and fine focus for perfect focusing

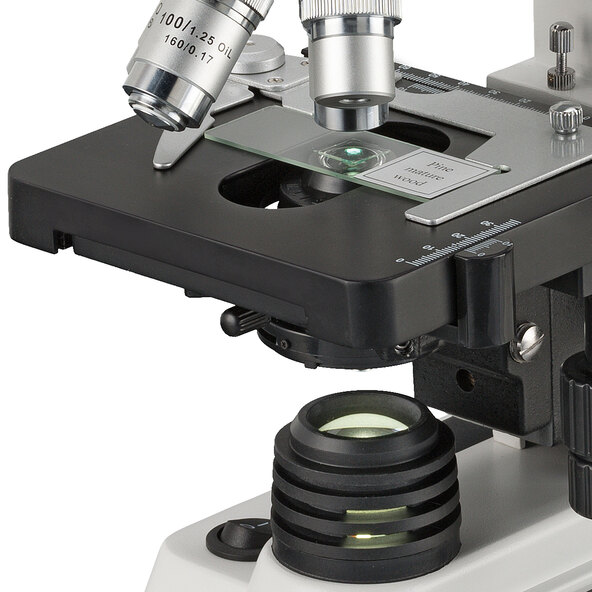

• Perfectly position objects with the coaxial mechanical stage
• Optimally adjust the illumination thanks to the dimmable LED illumination

Microscopy like in a Laboratory

This Bresser microscope allows you to utilize a wide magnification range of 40x to 1,000x with four objectives. Furthermore, the 40x and 100x objectives are protected against damage, and the 100x objective enables oil immersion microscopy. The immersion oil required for this, along with the slides, is included. So you can get started right away!

Versatile adjustment options for your comfort

Thanks to the coarse and fine focus knobs, you can easily achieve optimal focus on the microscope and also use the coaxial mechanical stage for precise positioning of your specimen. With the 360° rotatable binocular head, you can also individually adjust the interpupillary distance and make diopter adjustments. Individual settings are always possible.

With ideal magnification and numerous adjustment options, this LED transmitted light microscope from Bresser brings laboratory-like microscopy to your home. Use the device to conduct microscopic examinations of algae, bacteria, microorganisms, blood, and other specimens, and discover organisms and objects from a new perspective.

The microscope is individually adaptable and can be used in a variety of ways, both in schools and universities as well as for hobbyists.

Features:

• Magnification range 40–1,000x
• Microscope with solid metal body
• Dimmable LED illumination
• Abbe condenser is height-adjustable, centerable, and equipped with an iris diaphragm
• Coarse and fine focus for perfect focusing
• 360° rotatable binocular head allows individual adjustment of interpupillary distance and diopter compensation
• 40x and 100x objectives are spring-loaded to prevent damage
• The 100x objective can be used for oil immersion microscopy (immersion oil included). Included)

Scope of delivery:

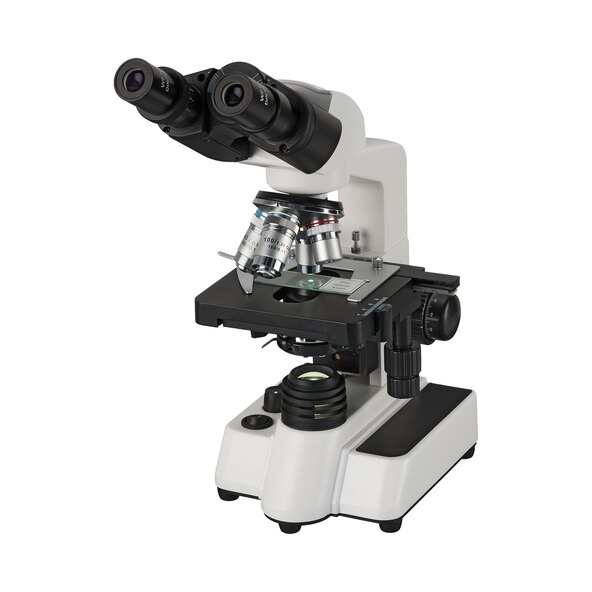

• Bresser Researcher Bino microscope set
• 1 pair of DIN eyepieces WF 10x with Ø 23 mm
• 4-position objective turret
• 4 DIN objectives: 4x/0.1, 10x/0.25, 40x/0.65, 100x/1.25
• Condenser with iris diaphragm
• Coaxial mechanical stage with vernier scale
• Coaxial fine and coarse focus drive
• Immersion oil

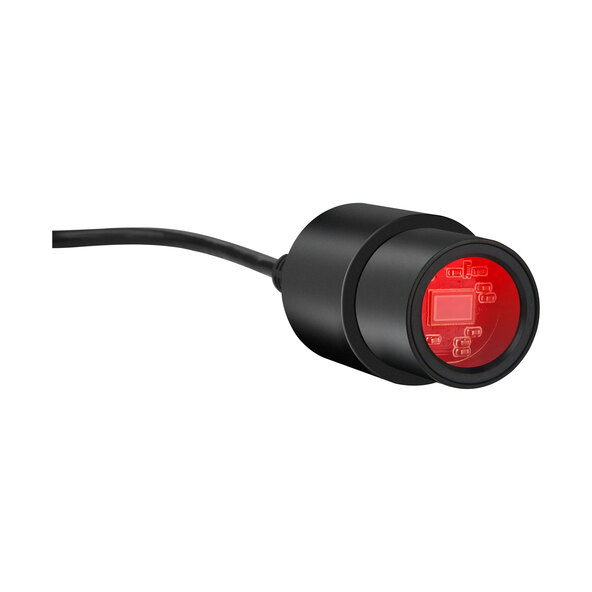

• Incl. Full HD eyepiece camera (#5913650)

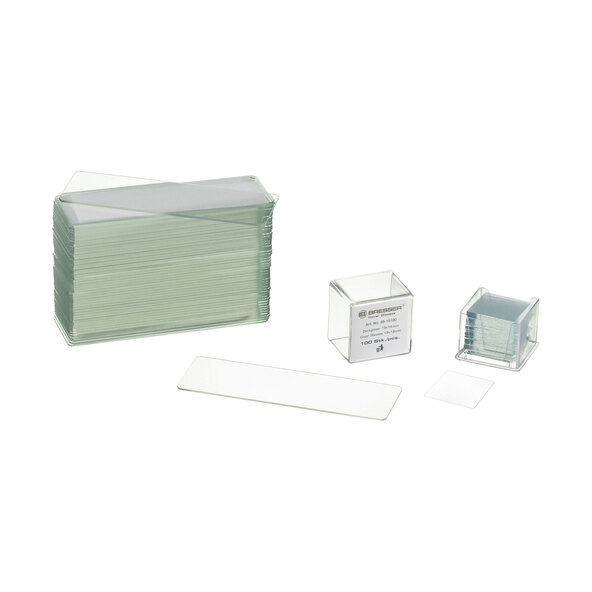

• Incl. Microscope slides/coverslips 50/100 pcs. (#5916000)

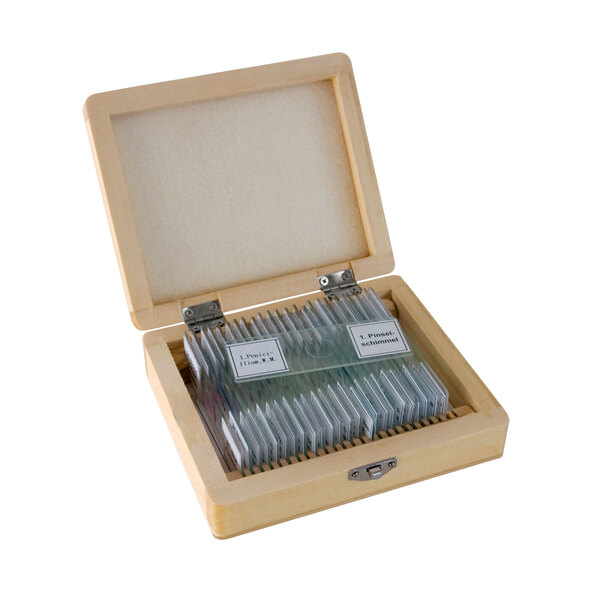

• Incl. permanent slides 25 pcs./box (#5986001)
• Instruction manual
• Warranty card
