Your power machine for precise wood cuts

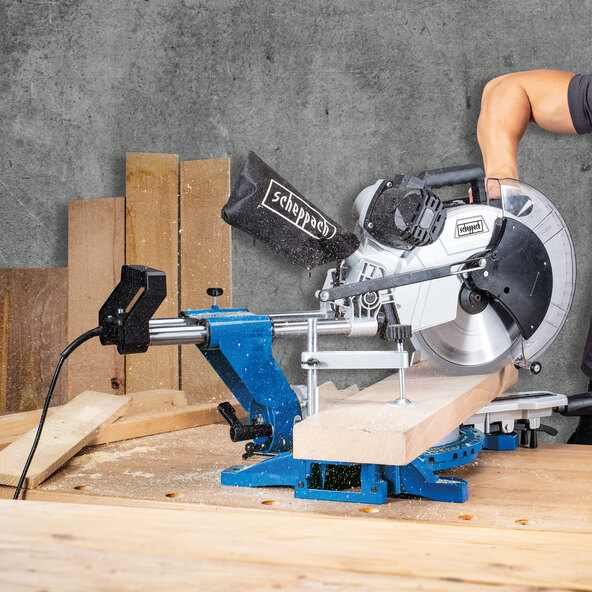

Enjoy perfect cutting results with the professional Scheppach sliding compound miter saw. The saw head, which tilts on both sides, offers high flexibility when making bevel cuts. The 2,000-watt motor ensures powerful cutting performance. Fast woodworking: Sliding and compound miter saw function. Precise cutting guidance with integrated laser. Comprehensive scope of delivery including extra saw blade. Consistent, precise cutting results thanks to double column guide. Maximum safety with fully enclosed saw blade guard. Fast and precise sawing with laser. The sliding compound miter saw from Scheppach is the ideal tool for anyone who enjoys working with wood. The high-quality saw blade and integrated laser function ensure precise cutting results, even for DIY enthusiasts. The laser projects the cutting line onto the material, providing you with perfect cutting guidance. Thanks to its powerful 2,000-watt motor, the saw blade effortlessly cuts through various hard and soft wooden beams. The miter saw is also equipped with a sliding function, allowing for precise cuts even on wide workpieces. The miter saw makes angled cuts easy. The swiveling worktable of the Scheppach miter saw features an angle adjustment from -45° to +45°, making bevel cuts effortless. A tilting saw head provides additional flexibility when creating miters. The Scheppach miter saw with sliding function is ideal for versatile use. The built-in laser projection allows you to work precisely.

ATTENTION: Please observe the safety instructions in the operating manual.

Features:

• Pull, miter, and compound miter saw for precise work on large and hard wooden beams
• Saw head tilts to both sides
• Swivel work table from -45 to +45°
• Double column guide with robust linear ball bearing for consistent, precise cutting results
• High workpiece stop on the base plate
• Stable and lightweight die-cast aluminum construction
• Built-in laser for precise cuts along the displayed cutting edge
• Consistent and precise cutting results
• High cutting performance

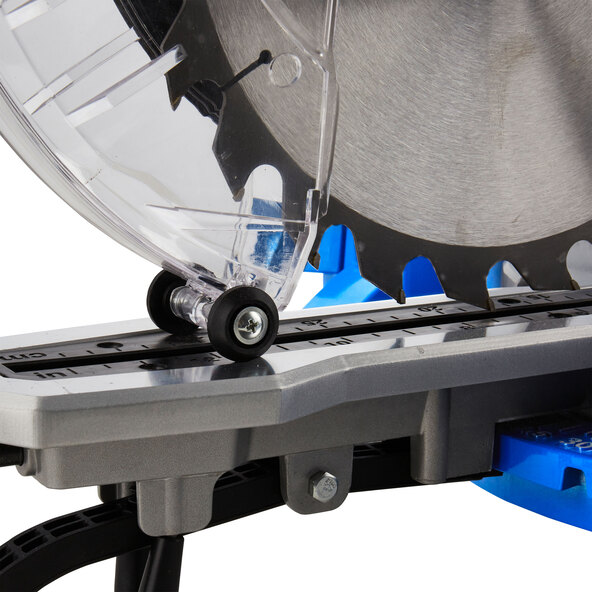

• Fully enclosed saw blade guard for maximum work safety
• Easy transport due to low weight: approx. 20.8 kg
• Incl. 2 HW saw blades with jw. 24 and 48 teeth (24-tooth saw blade pre-mounted)

Technical data:

• Cutting setting: Width approx. 330 mm, height approx. 105 mm
• Saw blade diameter: 305 mm (24/48 teeth)
• Saw blade speed: approx. 7,000 rpm
• Tip angle: 2 x 45°
• Bevel angle: 45° left to -45° right
• Cutting width/height: 90°/90° – 330 x 105 mm
• Cutting width/height: 90°/45° – 330 x 35 mm (right), 330 x 60 mm (l.)
• Cutting width/height: 45°/90° – 330 x 60 mm
• Cutting width/height: 45°/45° – 230 x 35 mm (r.), 230 x 60 mm (l.)
• Rotary table positions at: 45–31.6–22.5–0–22.5–31.6–45°
• Motor: 230–240 V~/50 Hz
• Motor power: 2,000 W

Dimensions/Weight:

• L x W x H: approx. 89 x 61.5 x 49 cm
• Approx. 20.8 kg

Scope of delivery:

• Scheppach HM140L miter saw

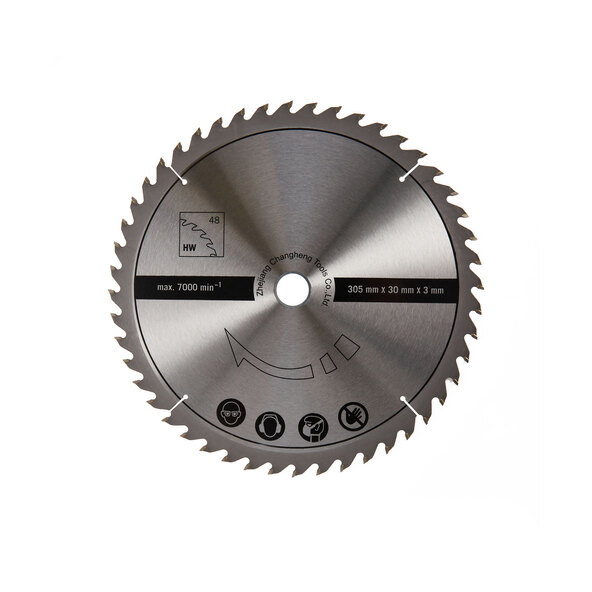

• 1 carbide-tipped saw blade, approx. 305 mm diameter, 24 teeth (pre-mounted)
• 1 carbide-tipped saw blade, approx. 305 mm diameter, 48 teeth
• Operating instructions

CAUTION: Please observe the safety instructions in the operating instructions.
