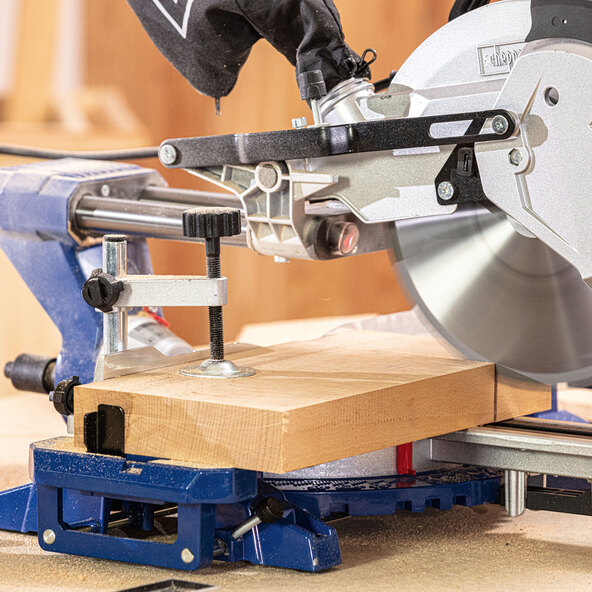

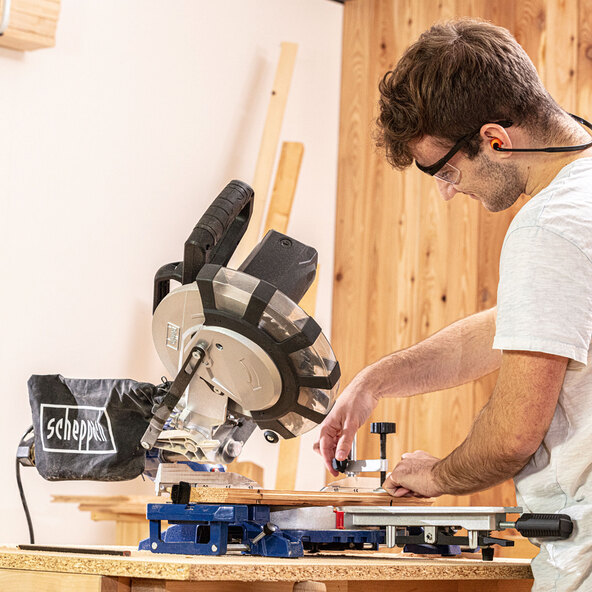

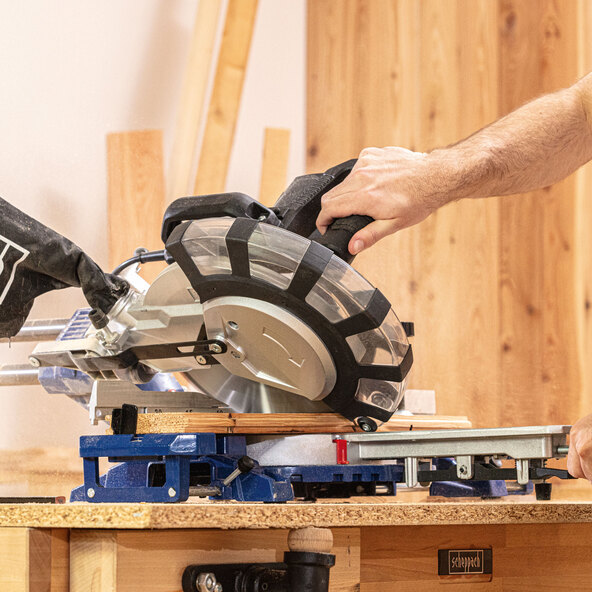

Precise miter saw for versatile cuts

The Scheppach miter saw offers you a stable double-column guide and a 2,000 W motor. The approximately 21 cm carbide-tipped saw blade with 24 teeth is ideal for precise crosscuts and miter cuts in hardwoods and softwoods, as well as in common plastics. An integrated laser and a tilting saw blade ensure precise cutting settings.

CAUTION: Please observe the safety instructions in the operating manual.

Features:

• Compact, sliding compound miter saw
• Stable and lightweight compound miter saw with double column guide
• Motor power: 2,000 W
• Motor speed: 4,800 rpm
• Tilting angle: 0° to 45°
• Miter angle: -45° to 45°
• Cutting width/height at 90°/90°: approx. 34 x 6.5 cm
• Cutting width/height at 90°/45°: approx. 24 x 6.5 cm
• Cutting width/height at 45°/90°: approx. 34 x 3.8 cm Cutting width/height at 45°/45°: approx. 24 x 3.8 cm Approx. 21 cm carbide-tipped saw blade for crosscuts and miter cuts in hardwood and softwood as well as common plastics Pre-assembled 24-tooth carbide-tipped saw blade, ideal for rip cuts in softwood Additional 48-tooth carbide-tipped saw blade for precise rip and cross cuts in solid wood Durable die-cast aluminum frame Built-in laser for precise indication of the cutting edge Two laterally adjustable aluminum workpiece supports for a larger support surface Rotating table and tilting saw blade for precise cutting settings and execution Includes: Dust collection bag for a clean work area

Dimensions/Weight:

• L x W x H: approx. 73.5 x 70.5 x 50 cm
• Approx. 14.5 kg
  Saw blade, Ø: approx. 21 cm

Scope of delivery:

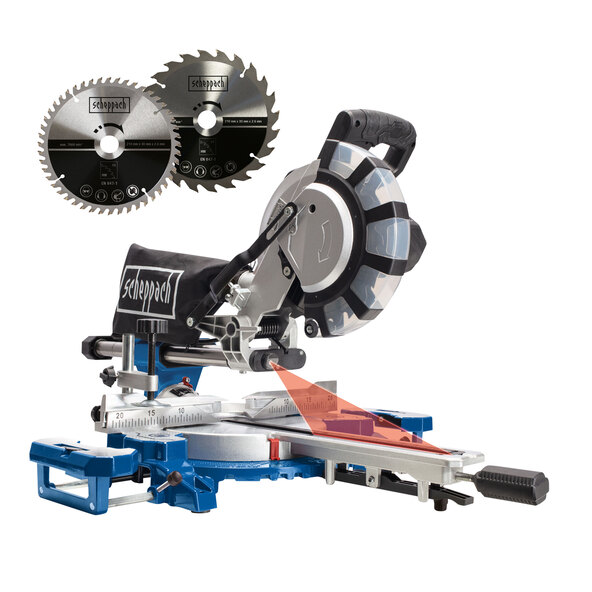

• SCHEPPACH miter saw HM216SPX
• 1 x clamping device
• 2 x workpiece supports (pre-assembled)
• 1 x chip collection bag
• 1 x 6 mm Allen key (C)
• 1 x 3 mm Allen key (D)
• Operating instructions

CAUTION: Please observe the safety instructions in the operating instructions.
