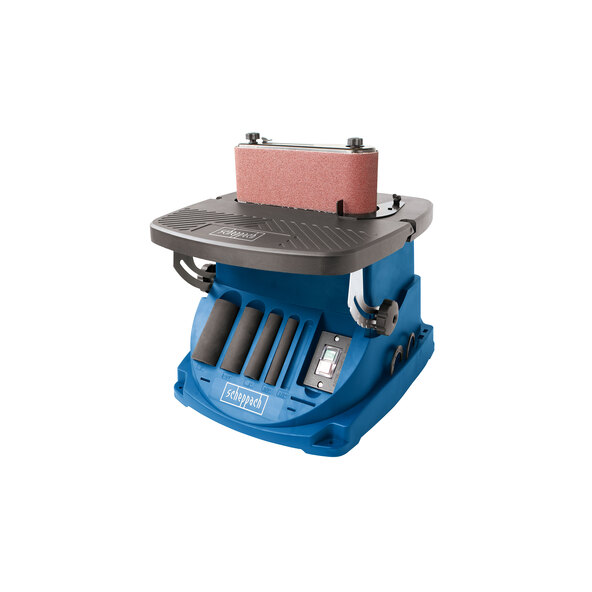

Oscillating spindle sander for precise woodworking

Whether model making, furniture making, or instrument making, with the OSM600 belt and spindle sander you give your woodworking projects the perfect finish. Thanks to oscillation, you achieve particularly smooth surfaces and precise details.

• Powerful sanding of all types of wood with 450 W motor
• Rotating and oscillating spindle with 16 mm oscillation stroke for the finest results
• Worktable adjustable by 45° forprecise corners and edges
• Includes Extensive accessories such as sanding belt, 5 sanding sleeves, rubber rollers & table inserts. Easy conversion from spindle sander to belt sander. Professionally process edges and wood cutouts. Thanks to the Scheppach OSM600, you can sand straight and rounded edges, inside radii, and cutouts. The oscillating and rotating spindle comes with 5 rubber rollers and matching sanding sleeves with different spindle diameters. This ensures you have the right sanding tool for every workpiece. For sanding straight edges, you can convert the device to a belt sander in just a few steps. Stable sander for stationary use. The OSM600 oscillating spindle sander is ideal for stationary use in the workshop. Thanks to the mounting holes in the housing, you can easily fix it to your workbench or a machine stand. The aluminum worktable offers ample space and can be adjusted by 45° – for precise, custom-made edges. For dust-free operation, the OSM600 spindle sander features an integrated port to which you can connect your dust extraction system.¹ ATTENTION: Please observe the safety instructions in the operating manual.


  ¹ Not included in the scope of delivery.

  Features:

  • Powerful 450W motor with sufficient power for all wood materials
  • Rotating and oscillating spindle
  • Stable, large aluminum worktable for larger workpieces
  • 45° adjustable worktable
  • Includes 5 sanding sleeves with diameters of 13, 19, 26, 38 and 51 mm, matching rubber rollers, table inserts and a sanding belt. Practical storage for accessories and assembly tools. Integrated dust extraction port. Easily accessible and dust-protected on/off switch. Technical data: Motor: 220–240 V ~ 50 Hz. Power input: 450 W. Speed: approx. 2,000 rpm. Oscillation stroke: approx. 16 mm. Sanding belt speed: approx. 8 m/s. Extraction port diameter: approx. 38 mm. Table tilt: 0–45° Sound pressure level: approx. 76 dB(A) Sound power level: approx. 89 dB(A) Table, L x W: approx. 42.5 x 41 cm Dimensions/Weight: L x W x H: approx. 40 x 36 x 44 cm Approx. 9.6 kg

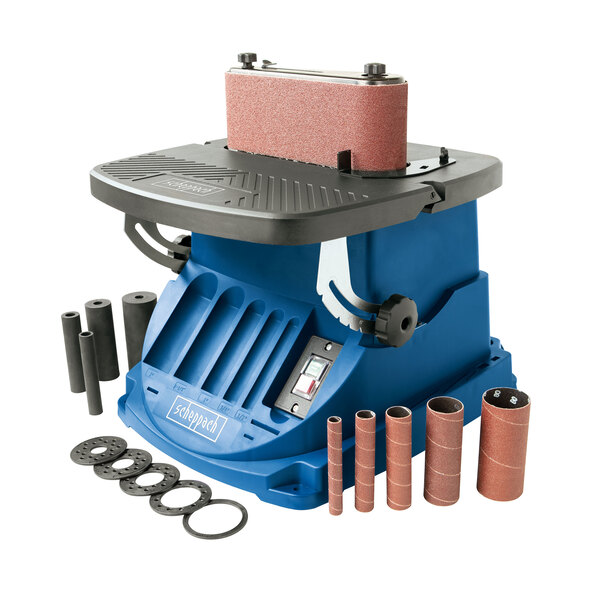

  Scope of delivery:

  • Scheppach OSM600 oscillating edge, belt and spindle sander
  • 4 x rubber sleeves, length: 115 mm, Ø: 19/26/38/51 mm
  • 5 x sanding sleeves, grit 80, Ø: 13/19/26/38/51 mm
  • 5 x table inserts, Ø: 13/19/26/38/51 mm
  • 3 x spindle discs, Ø: 16/22/44 mm
  • Hex key SW13
  • Operating instructions

  ATTENTION: Please observe the safety instructions in the operating instructions.

  Warranty conditions of the Manufacturer's note:

  Our products undergo strict quality control. Should this device nevertheless malfunction, we sincerely regret this and ask you to contact our listed service address. We are also happy to assist you by telephone via our service hotline. The following applies to the assertion of warranty claims – without limiting your statutory rights:

  1. Warranty claims can only be made within a maximum period of 5 years, calculated from the date of purchase. Our warranty service is limited to the repair of material and manufacturing defects or the replacement of the device.

  Our warranty service is free of charge for you.

  2. Warranty claims must be made immediately upon discovery. The assertion of warranty claims after the expiry of the warranty period is excluded, unless the warranty claims are made within a period of 2 weeks after the expiry of the warranty period.

  3. Please send a defective device, along with the warranty card and receipt, to the service address. Please request a free pickup from the specified service center. If the defect is covered by our warranty, you will receive a repaired or new device. Repair or replacement does not start a new warranty period. The original warranty period of 5 years from the date of purchase remains valid. This also applies to on-site service. Please note that our warranty is void in cases of misuse or improper handling, failure to observe the safety precautions applicable to the device, use of force, or repairs not performed by an authorized service center. We will repair defects not (or no longer) covered by the warranty, or damage that has voided the warranty, for a fee. Please send the device to our service address. Your statutory warranty rights, which are free of charge, remain unaffected. Before sending in your device, please contact our customer service department by phone or email. This will allow us to assist you with any operating errors. 00800 4001 4001 [email protected] Scheppach GmbH Günzburger Straße 69 89335 Ichenhausen Germany www.scheppach.com Operating Instructions
