Ideal for home and workshop use

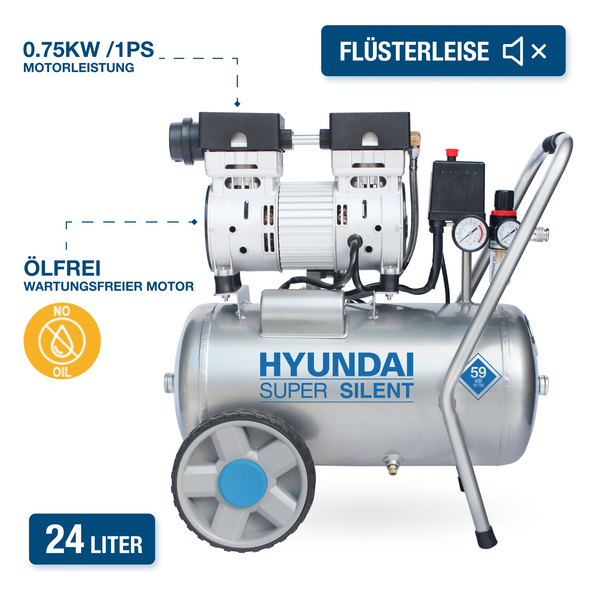

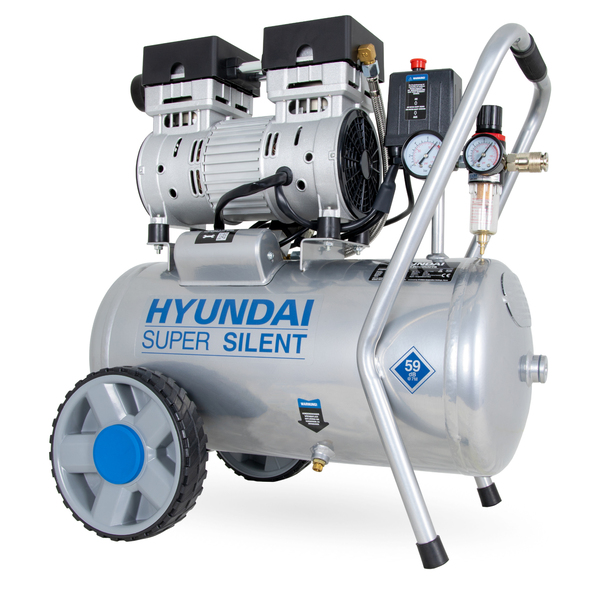

The HYUNDAI Silent Compressor SAC55752 offers ideal performance with a pressure tank volume of approximately 24 liters and an operating pressure of up to 8 bar. With a suction capacity of approximately 125 liters per minute and oil-free operation, the compressor is ideal for use in the home, workshop, or garage. The automatic pressure regulation keeps the tank pressure constant between 6 and 8 bar. Thanks to vibration-damping, rubberized wheels and a practical handle, the compressor is easy to maneuver.

Features:

• Compact and quiet air compressor
• Power supply: 230 VAC, 50 Hz
• Input power: 0.75 kW / 1 HP
• Compressor speed: approx. 1,350 rpm

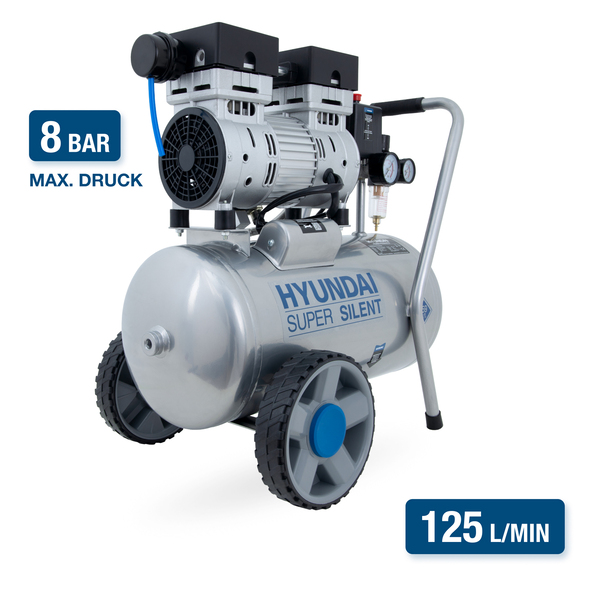

• Max. operating pressure: 8 bar
• Pressure tank volume: approx. 24 l

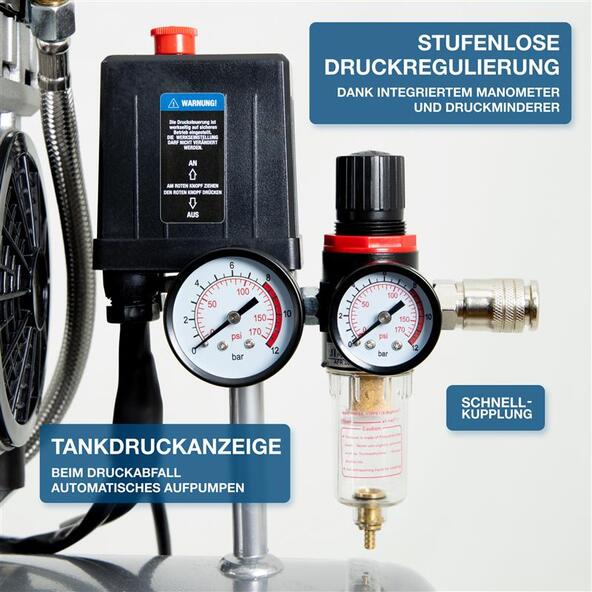

• Max. Intake capacity: approx. 125 l/min Output capacity at 2 bar: approx. 86 l/min Output capacity at 4 bar: approx. 70 l/min Output capacity at 6 bar: approx. 60 l/min Output capacity at 7 bar: approx. 53 l/min Output capacity at 8 bar: approx. 43 l/min Automatic on/off switching for constant tank pressure between 6 and 8 bar Sound pressure level: LpA 59 dB(A) Sound power level: LwA 80 dB(A), (K - 2.2 dB) Oil-free operation, low maintenance 1 x quick-release coupling, adjustable Integrated pressure gauge and pressure reducer Tank pressure indicator with automatic Refill function

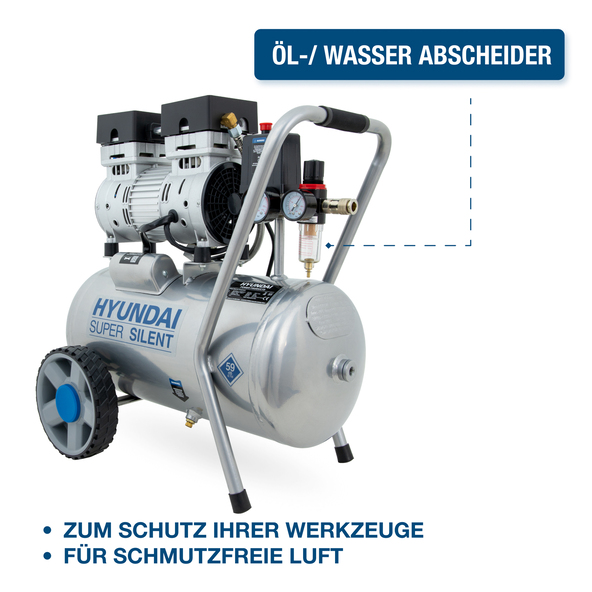

• Integrated oil and water separator

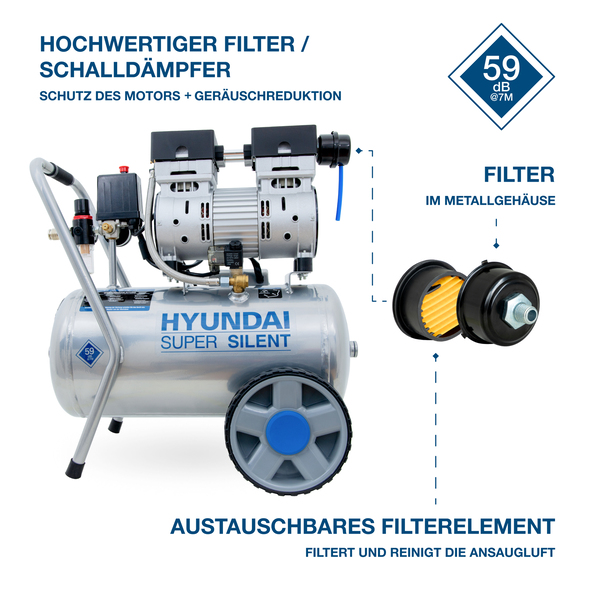

• Replaceable filter element for cleaning the intake air
• Filter in metal housing
• Silencer for noise reduction
• 1/4" (approx. 0.635 cm) quick-release coupling
• Vibration-damping feet
• Stable thanks to 4-point support
• Extra-large wheels
• Comfortable pull handle
• Easy to carry thanks to low weight and carrying handle
• Powder-coated pressure vessel for corrosion protection
• Start-up relief and overload protection

Dimensions/Weight:

• L x W x H: approx. 55 x 59 x 36 cm
• Approx. 25 kg

Scope of delivery:

• HYUNDAI Silent Compressor SAC55752, 8 bar / 24 l
• 1 x Air filter
• 2 x Wheels with screws / nuts / washers / caps
• Operating instructions

Operating instructions Operating instructions + Warranty card
