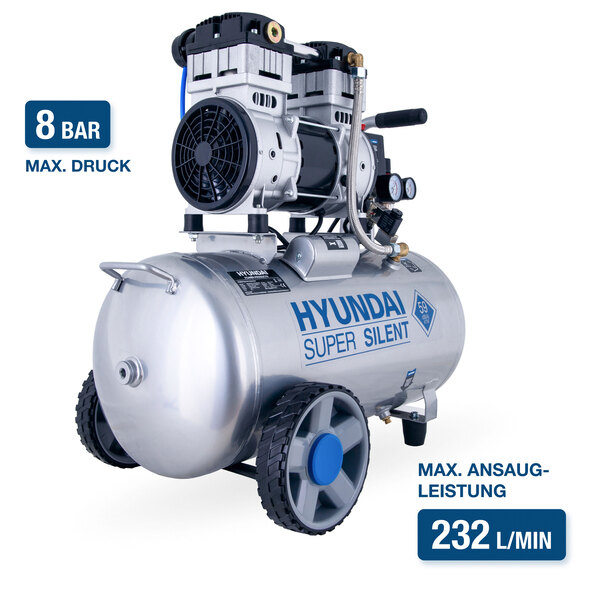

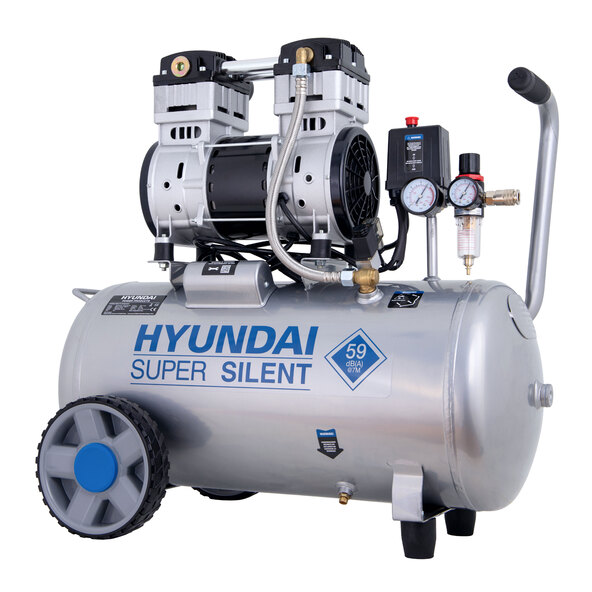

Quiet Compressor for Versatile Use

This quiet and powerful silent compressor is ideal for use in workshops, homes, or garages. With a maximum operating pressure of 8 bar and a 50-liter pressure tank, it is suitable for various applications. The intake capacity of approximately 232 l/min ensures rapid compressed air supply. Equipped with a pressure gauge, pressure regulator, and an oil and water separator, the working pressure can be easily adjusted.

Features:

• Compact and quiet air compressor
• Automatic on/off switching for constant tank pressure
• Oil-free
• One quick-release coupling (connection: 1 x quick-release coupling, adjustable)

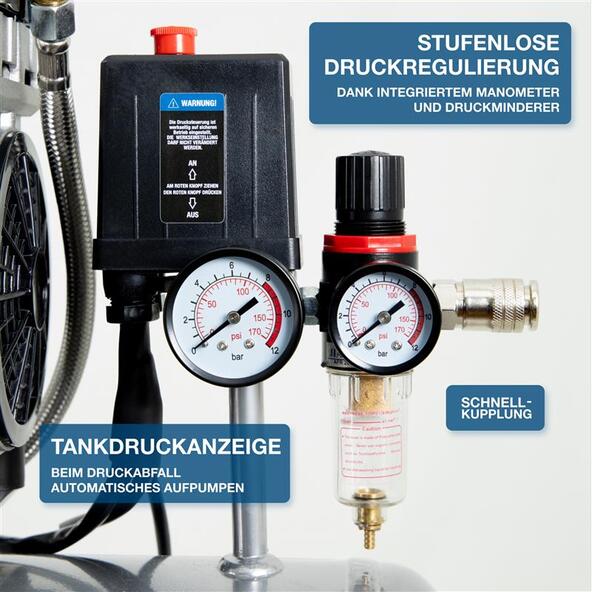

• Integrated pressure gauge and pressure reducer for easy regulation
• Additional pressure gauge for easy tank pressure release

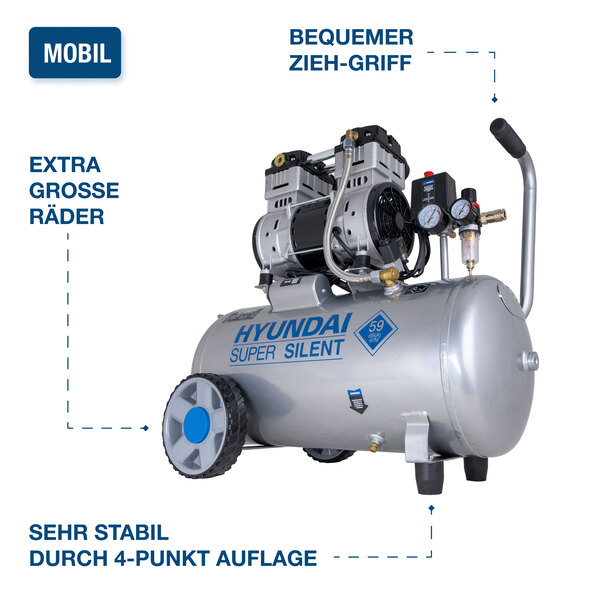

• Large, rubberized wheels, handle
• Corrosion-protected by powder coating

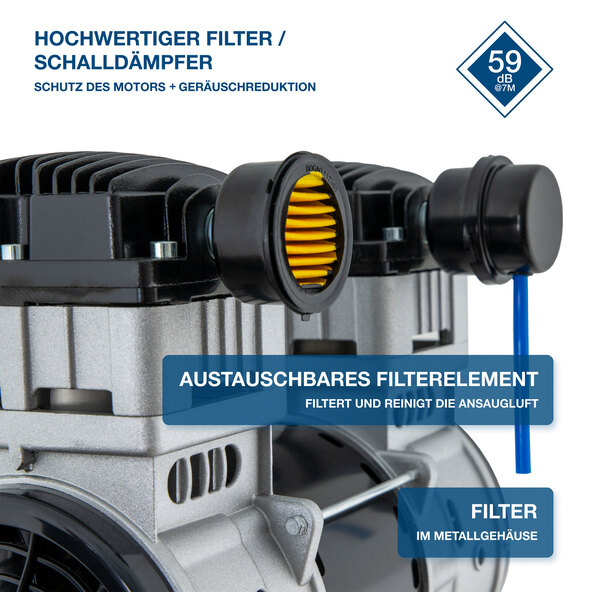

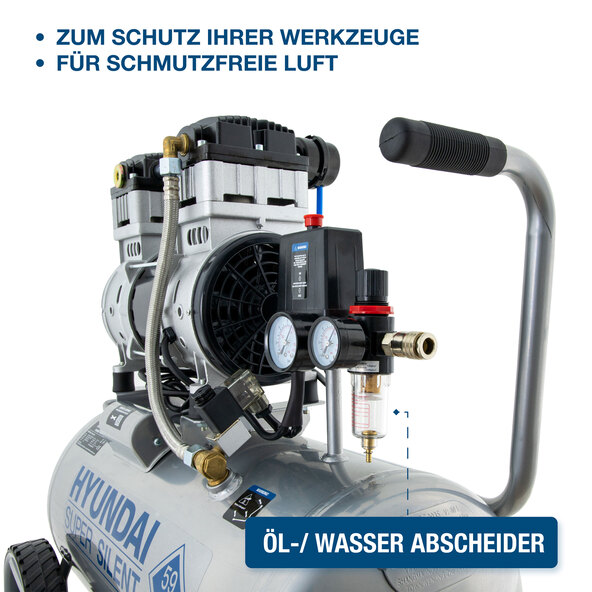

• Upstream oil and water separator
• Built-in start-up relief and overload protection
• Mains connection: 230 VAC, 50 Hz
• Input power: 1.5 kW (2 HP)
• Max. Operating pressure: 8 bar Compressor speed: max. 1,350 rpm Pressure vessel volume: approx. 50 l Max. Intake capacity: approx. 232 l/min Delivery capacity at 0 bar: approx. 191 l/min, approx. 11.5 m³/h Delivery capacity at 2 bar: approx. 166 l/min, approx. 10 m³/h Delivery capacity at 4 bar: approx. 150 l/min, approx. 9 m³/h Delivery capacity at 6 bar: approx. 133 l/min, approx. 8 m³/h Delivery capacity at 7 bar: approx. 116 l/min, approx. 7 m³/h Delivery capacity at 8 bar: approx. 100 l/min, approx. 6 m³/h Sound pressure level (LpA) approx. 59 dB(A) @7 m Sound power level (LwA): approx. 80 dB(A), (K - approx. 2.2 dB) Dimensions/Weight: L x W x H: approx. 73 x 40 x 79 cm Approx. 38 kg Scope of delivery: HYUNDAI Silent Compressor SAC55753, 8 bar / 50 l 2 x Air filters 2 x Wheels with screws / nuts / washers / caps 2 x Feet Operating instructions CAUTION: Please observe the safety instructions in the operating manual.

  Instruction manual + warranty card
