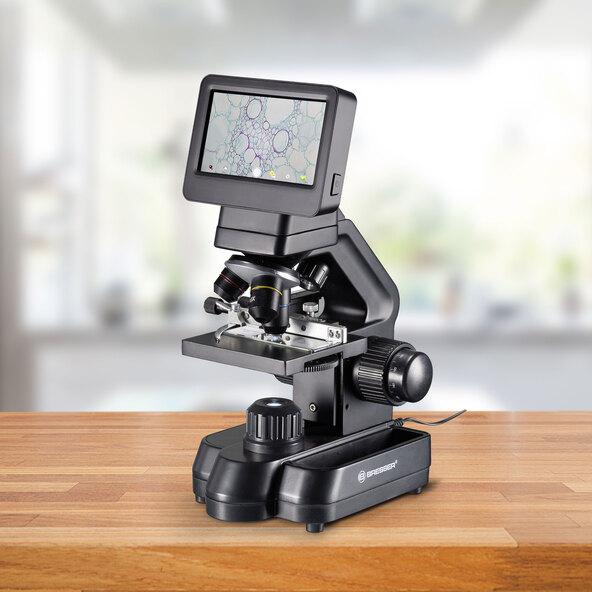

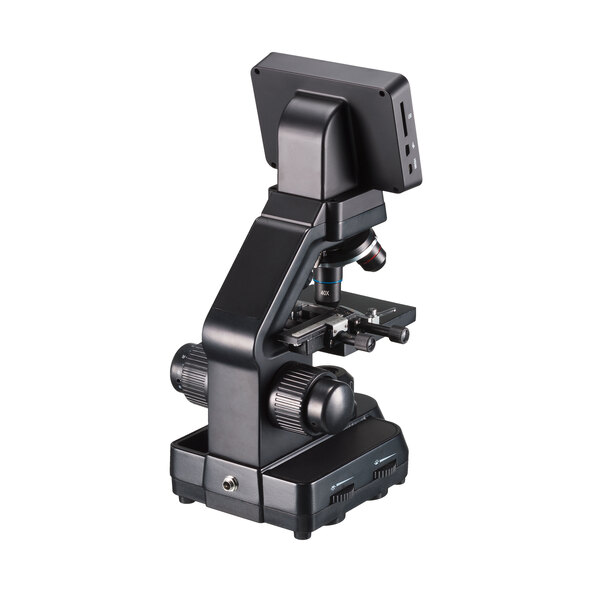

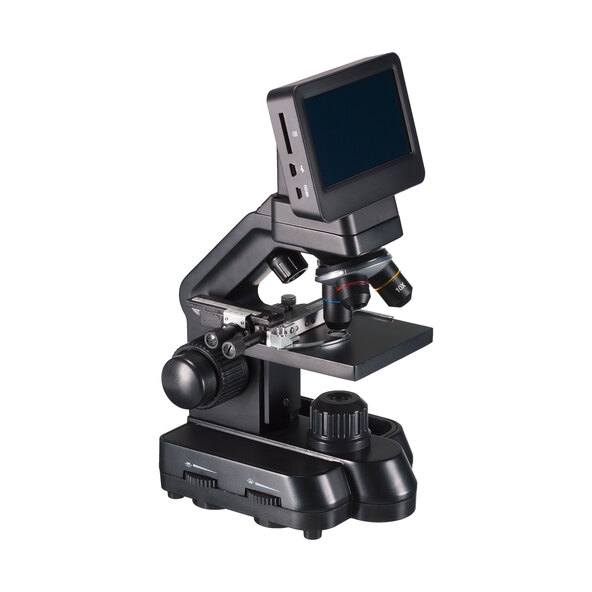

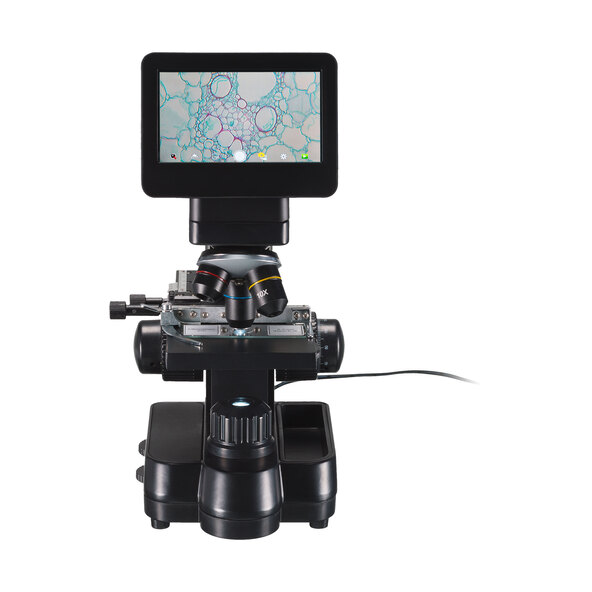

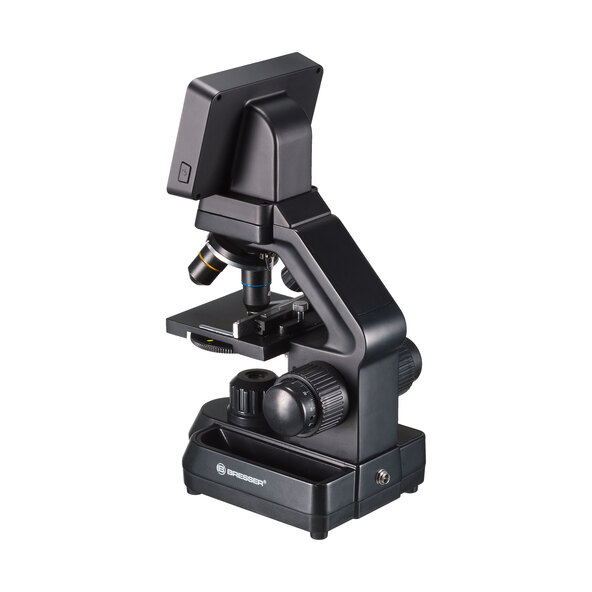

Digital Microscope

The integrated 5-megapixel camera sensor allows you to take microphotos and HD videos. You control the camera precisely via the monitor, so you can easily select and adjust zoom and image framing. In larger groups or during lessons, the live image can be transmitted to a monitor via HDMI, allowing everyone to share in the exciting impressions. With CMOS sensor for capturing microphotos and HD videos. Image transmission to screens and televisions via HDMI connection. Up to 40x lens magnification (equivalent to 1125x on the integrated monitor) is possible. Precise adjustment thanks to the mechanical cross stage and coarse and fine focusing. Dimmable LED incident and transmitted light illumination for optimal visibility. Precise operation like in a laboratory. With this device, you can easily view even the smallest objects. Details that would otherwise remain hidden to the human eye. With the mechanical cross-stitch and coarse and fine focusing, you can precisely adjust the specimen for optimal viewing. Fascinating insights into microscopy. The up to 40x objective magnification allows you a clear view of the object. For example, examine microorganisms and bacteria from a hay infusion, but also opaque samples such as leaves, sand, or small insects. Thanks to the LED incident and transmitted light illumination, no detail will escape you. Capture images and videos directly at the microscope, precisely adjust and illuminate the sample, and operate the microscope via the monitor – the Bresser microscope offers you comfortable and exciting insights into the microcosm. (Referring to the display on the microscope screen) Features: Microscope with LCD display for school and hobby use; With 5 MP camera sensor for capturing photomicrographs and HD videos; Camera control directly on the display with multilingual, intuitive interface. Menu navigation: Zoom in on the image with two fingers; Image transmission to screens and televisions via HDMI connection; Mechanical cross table with coarse and fine focusing; Up to 40x objective magnification possible for observing microorganisms or bacteria; Dimmable LED incident and transmitted light illumination; Includes: Extensive accessory package (specimen box, microscopy set, Artemia hatching kit)

Technical specifications:

• LC display: 16:9, approx. 11 cm diagonal (4.3")
• Camera sensor: 5-megapixel Aptina CMOS
• Lenses: 4x, 10x, 40x
• Magnification¹: approx. 30x, 78x, 290x
• Compatible with SD and SDHC cards up to max. 32 GB²
• Photo resolution: 2,592 x 1,944 pixels
• Video resolution: 1,280 x 720 pixels, 1,920 x 1,080 pixels (HDMI, 30 fps)

Connections:

• Micro-HDMI connection
• USB connection

Dimensions/Weight:

• W x H x D: approx. 14 x 29.5 x 14 cm
• Approx. 1,465 g

Scope of delivery:

• Bresser Biolux Touch 5 MP HDMI student microscope set
• Microscopy kit (dissecting needles, pipette, tweezers, MikroCut)
• Artemia set
• Bresser slides and coverslips
• Bresser professional permanent slides (10 (pcs/box)
• Dust cover
• HDMI connection cable
• 5V power supply (EU)
• Instruction manual

¹Referring to the display on the microscope screen

²Cards not included
