Ideal for DIY enthusiasts

Whether you want to trim the edges of wood or shape boards and strips: the Scheppach router makes it possible. The HF50 is suitable for use with router bits up to 8 cm in diameter. The spindle protrudes through an opening in the router table, which can be adjusted using the two included table inserts. You can continuously adjust the spindle height, and therefore the height of the router bit, using the hand crank on the side of the machine. Then you fix the desired height between zero and 4 cm with a clamping screw.

• Table extensions on both sides for comfortable working
• Variable speed control from 11,500 to 24,000 rpm
• Sufficient power thanks to the 1,500 W motor
• Ideal for mobile work thanks to its compact size
• Includes bushings (approx. 6, 8, 12 mm) for stable cutter fixation

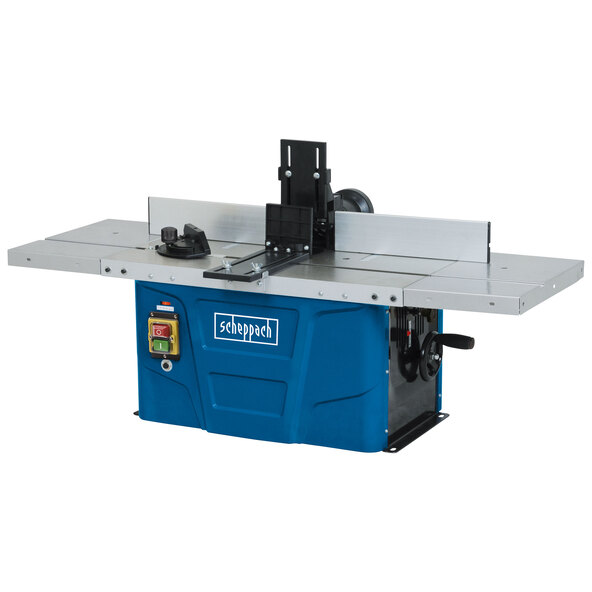

Compact table model with great possibilities

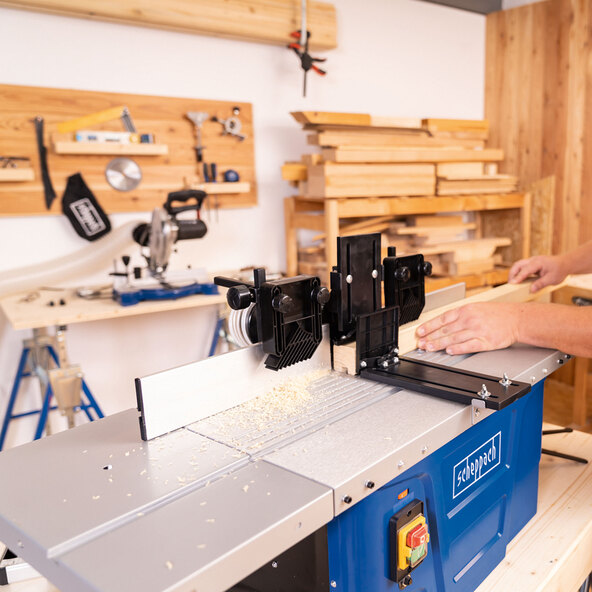

Work with your new wood router, even on larger workpieces – despite its handy size. The table extensions on both sides of the router increase the table surface to approx. 61 x 63 cm, thus enabling even special routing work. You can align the extension table flat and securely attach it to the table at both ends. Three different bushings are included so you can attach your various router bits. For professional work and greater precision, always select the appropriate speed for woodworking to achieve ideal results and protect your workpiece from unsightly burn marks that can occur when working at excessively high speeds. The speed of your wood router is adjustable between 11,500 and 24,000 revolutions per minute. The machine also features a 76 cm high rip fence and two pressure bars at the router head to secure the workpiece during routing and prevent kickback. With the crosscutting guide featuring an angle scale that slides horizontally along the table, you can easily perform miter cuts. With its table extension and sufficient power for your next woodworking projects, the Scheppach HF50 table router is the perfect router for your workshop. Even mobile working is possible thanks to its compact design.

ATTENTION: Please observe the safety instructions in the operating manual.

Features:

• Compact table model
• Variable speed control from 11,500 to 24,000 rpm
• Powerful 1,500 W motor
• Standard with angle stop and large-dimensioned aluminum stops
• Table extensions on both sides
• Adjustable spindle height from 0 to 4 cm
• Workpiece size, L x W x H: max. 65 x 16 x 6.5 cm

Dimensions/Weight:

• L x W x H: approx. 61 x 36 x 31.1 Table size, L x W: approx. 61 x 63 cm Approx. 21 kg Scope of delivery: Scheppach HF50 table milling machine 2 table extensions Adjustment crank with M6 cap nut Complete cross-cutting gauge 4 and 5 mm Allen keys 19 and 24 mm wrenches Operating instructions Warranty card ATTENTION: Please observe the safety instructions in the operating manual. Manufacturer's warranty conditions: Our products are subject to strict quality control. Should this device nevertheless malfunction, we sincerely regret this and ask you to contact our listed service address. We are also happy to assist you by phone via our service hotline. The following applies to the assertion of warranty claims – without limiting your statutory rights: 1. Warranty claims can only be made within a maximum period of 5 years from the date of purchase. Our warranty service is limited to the repair of material and manufacturing defects or the replacement of the device. Our warranty service is free of charge for you. 2. Warranty claims must be made immediately upon discovery. Making warranty claims after the warranty period has expired is excluded, unless the warranty claims are made within 2 weeks of the warranty period's expiry. 3. Please send a defective device, along with the warranty card and receipt, to the service address. Please request a free collection from the specified service center. If the defect is covered by our warranty, you will receive a repaired or new device. Repair or replacement of the device does not start a new warranty period. The warranty period of 5 years from the date of purchase remains valid. This also applies if an on-site service is used. Please note that our warranty is void in cases of misuse or improper handling, failure to observe the safety precautions applicable to the device, use of force, or interventions not carried out by an authorized service center. We will repair defects in the device not (or no longer) covered by the warranty, or damage that has voided the warranty, for a fee. Please send the device to our service address for this purpose. Your statutory warranty rights, which are free of charge, remain unaffected. Before sending in your device, please contact our customer service department by phone or email. This way we can help you with any operating errors.
