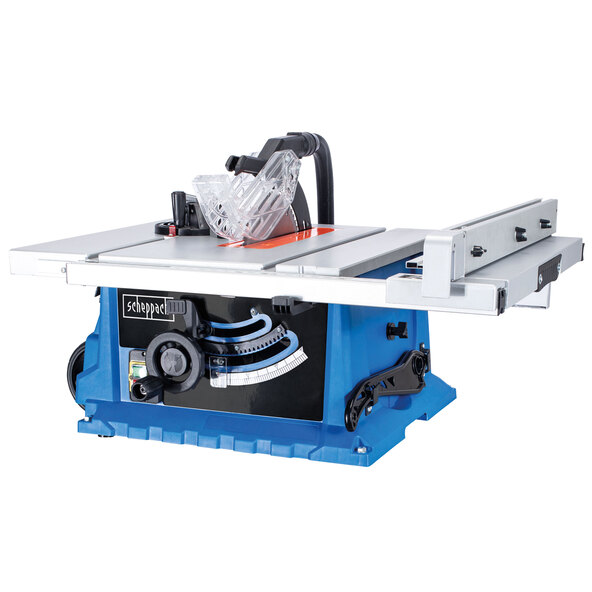

Versatile tool for construction or renovation work

Table saws are among the most versatile and sought-after machines in any workshop, especially when it comes to house construction, construction, or renovation work. The Scheppach circular saw is ideally suited for both the advanced hobby workshop and professional use. The 2,000-watt motor and the carbide-tipped saw blade ensure precise, consistent cutting results. Powerful table saw with a 2,000-watt motor and a saw blade speed of 7,000 rpm. High stability thanks to the extendable table extension. Convenient height and bevel adjustment via the 2-in-1 handwheel. Optimal results: 255 mm saw blade with a 75 mm cutting height. Includes accessories: crosscut fence and rip fence. Work safety thanks to the saw blade guard. The Scheppach table saw is equipped with a transparent saw blade guard. This ensures optimal protection during your woodworking projects. The table saw has dust extraction ports at the top and bottom to remove shavings produced when working with wood. Also suitable for processing large workpieces. Your new table saw is equipped with an extendable table extension. This allows you to place even large workpieces safely and flat on the 920 mm work surface. The powerful 2,000 W motor delivers high performance at nearly 7,000 rpm, even with large and hard pieces of wood. Thanks to the miter gauge, you can perform a variety of crosscuts with your new saw. Use the 2-in-1 handwheel to adjust the desired cutting height. The Scheppach HS105 table saw is ideal for all kinds of woodworking. ATTENTION: Please observe the safety instructions in the user manual.

Features:

• Table circular saw suitable for both the advanced hobby workshop and professional use
• Powerful 2,000 W motor
• With extendable table extension for high stability
• HW saw blade for consistent and precise cutting results
• 2-in-1 handwheel for convenient height and bevel adjustment
• Saw blade guard for high working safety
• With side storage for accessories and assembly tools
• Incl. Crosscutting guide and rip fence
• Crosscutting guide enables precise angle cuts from -60 to +60°

Technical data:

• AC motor: 220–240 V~ / 50 Hz
• Power: 2,000 watts
• Operating mode: S6 20%
• No-load speed: 4,800 rpm
• Saw blade diameter: approx. 255 mm
• Number of teeth: 60
• Riving knife thickness: approx. 2.5 mm
• L x W, table size: approx. 565 x 565 (675) mm
• Cutting height 90°: max. 80 mm
• Cutting height 45°: max. 50 mm
• Height adjustment: 0–80 mm
• Saw blade swivels: 0–45°
• Dust extraction port, Ø: approx. 35 mm

Dimensions/Weight:

• L x W x H: approx. 68 x 63 x 38 cm
• Approx. 23.9 kg

Scope of delivery:

• Scheppach HS105 table saw
• Operating instructions

ATTENTION: Please observe the safety instructions in the operating instructions.

Manufacturer's warranty conditions:

Our products are subject to strict quality control. Should this device nevertheless malfunction, we sincerely regret this and ask you to contact our service address listed below. We are also happy to assist you by telephone via our service hotline. The following applies to the assertion of warranty claims – without limiting your statutory rights: 1. Warranty claims can only be made within a maximum period of 5 years from the date of purchase. Our warranty service is limited to the repair of material and manufacturing defects or the replacement of the device. Our warranty service is free of charge for you. 2. Warranty claims must be made immediately upon discovery. The assertion of warranty claims after the warranty period has expired is excluded, unless the warranty claims are made within a period of 2 weeks after the warranty period has expired. 3. Please send a defective device, along with the warranty card and the receipt, to the service address. Please request a free collection from the specified service center. If the defect is covered by our warranty, you will receive a repaired or new device. Repair or replacement of the device does not start a new warranty period. The warranty period of 5 years from the date of purchase remains valid. This also applies if on-site service is used. Please note that our warranty is void in cases of misuse or improper handling, failure to observe the safety precautions applicable to the device, use of force, or interventions not carried out by an authorized service center. We will repair defects in the device that are not (or no longer) covered by the warranty, or damage that has voided the warranty, for a fee. Please send the device to our service address. Your statutory warranty rights, which are free of charge, remain unaffected. Before sending in your device, please contact our customer service department by phone or email. This will allow us to assist you with any operating errors. 00800 4001 4001 [email protected] Scheppach GmbH Günzburger Straße 69 89335 Ichenhausen Germany www.scheppach.com Operating Instructions
