Versatile Table Saw for DIY Enthusiasts

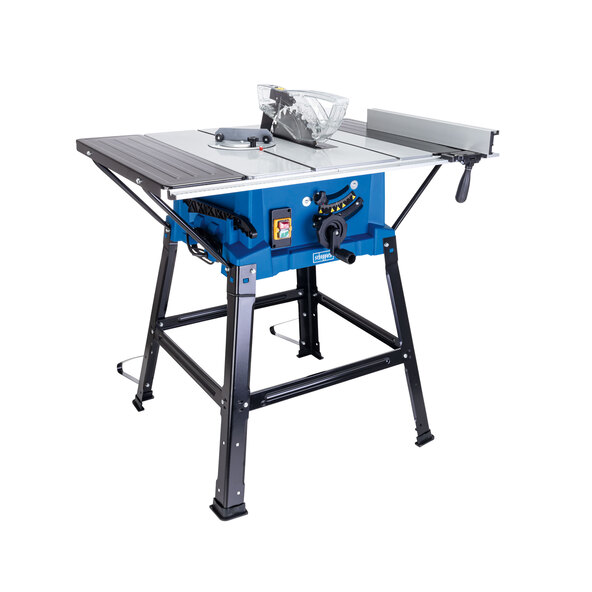

The SCHEPPACH HS110 table saw is ideal for a wide range of tasks around the home and in the trades. With a powerful 2,000 W motor and a 254 mm saw blade, it allows cutting heights of up to 87 mm. The extendable table extensions on both sides provide a larger work surface, ideal even for bigger workpieces. The saw blade can be tilted up to 45° for making complex angled cuts. Thanks to the stable base and the handwheel adjustment for height and tilt, precise work is easy to achieve.

Features:

• Motor power: 2,000 W
• Motor: 230 V~ / 50 Hz
• Saw blade speed: 4,800 min⁻¹
• Saw blade swivels from 0° – 45° Ideal for complex angle cuts
• Table extension extendable on both sides
• Also ideal for larger workpieces

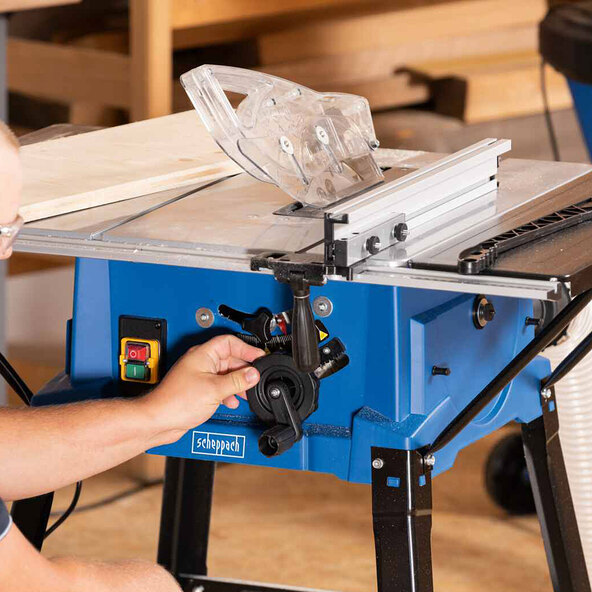

• Height and tilt adjustment with handwheel
• Base included as standard
• Pre-mounted saw blade with 24 teeth
• Incl. Saw blade guard, crosscut guide and rip fence

Dimensions/Weight:

• L x W x H: approx. 93 x 92.2 x 104 cm
• Saw blade: approx. Ø 254 x Ø 30 x 2.8 mm, 24 teeth
• Table size, L x W: approx. 54.5 x 63 cm
• Table size with extension, L x W: approx. 93 x 63 cm
• Table height (max. cutting height): approx. 87 cm
• Cutting height at 90°: approx. 87 mm
• Cutting height at 45°: approx. 55 mm
• Total: approx. 19 kg Scope of delivery: SCHEPPACH table saw HS110 1 x saw table with pre-mounted saw blade, 24 teeth 1 x saw blade guard 1 x riving knife 1 x parallel fence 1 x crosscut fence 1 x fence rail 1 x push stick 4 x legs 4 x center braces 4 x rubber feet 2 x stand brackets 8 x hex head screws with Phillips head and mounted washer/spring washer 12 x carriage bolts 12 x washers 12 x spring washers 12 x nuts 1 x ring spanner 10/22
• 1 x Open-end wrench SW 10
• 1 x Hex key HX 6
• 1 x Hex screws
• Operating instructions

Operating instructions
