Complete package for your TV reception

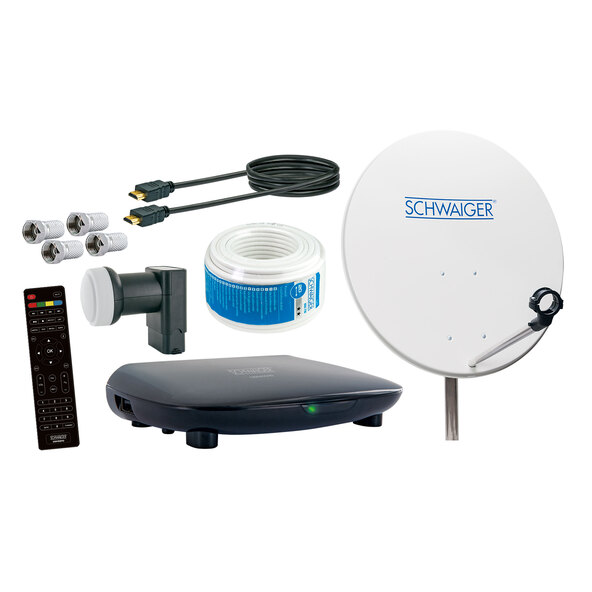

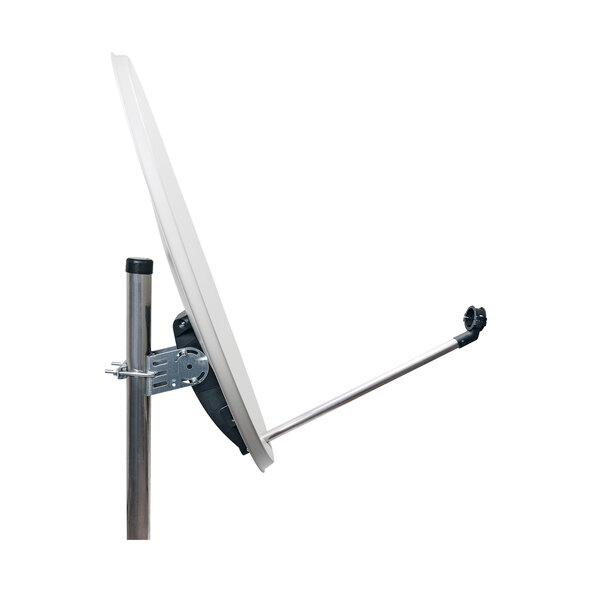

Your new satellite system from Schwaiger is a practical complete package with a steel offset antenna, digital twin LNB, two satellite receivers with Full HD reception, F-connectors, and coaxial and HDMI cables. This way you are perfectly equipped to provide satellite TV for not just one, but two users. Comprehensive set for two users: Full HD TV reception via satellite dish. Complete package with two satellite receivers, coaxial and HDMI cables. Practical: Satellite system for two users. With your new satellite system, you can equip not just one, but two TVs with radio and TV channels via satellite reception – the two included satellite receivers make it possible. Both users can independently receive a diverse HD program via this reception system. For more entertainment: TV program for two users: With the satellite system in the two-user set, two televisions can be supplied with one satellite receiver and thus with a comprehensive range of programs. Simply mount the satellite dish in your outdoor area and experience satellite reception in Full HD quality. Practical set for two users: The Schwaiger twin satellite complete system is your comprehensive all-in-one package for satellite TV reception. The terms HDMI and HDMI High-Definition Multimedia Interface, as well as the HDMI logo, are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the USA and other countries. Features: Complete satellite system for two users; Independent program selection for two users; Wall or mast mounting; Location: Outdoors; Color: Light Gray; Steel offset antenna (80 cm) style="list-style-type:circle">

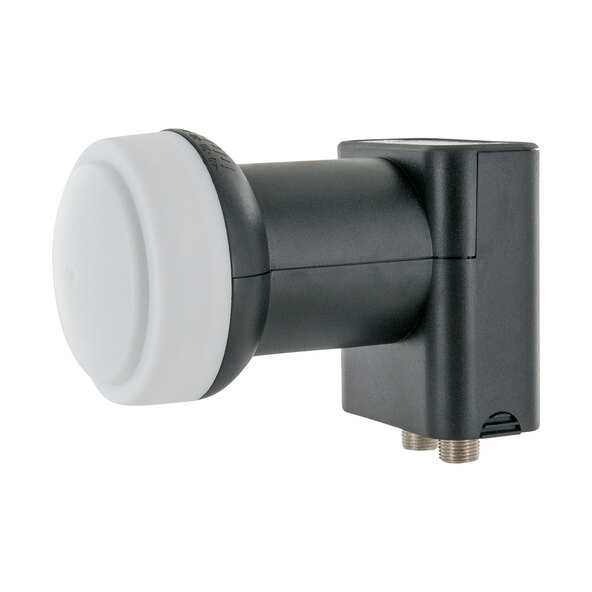

- Receiver system for setting up 2-user systems
- Suitable for multi-feed systems
- Protection of the F-connectors by a pull-out weatherproof cover
- Weather protection by an outer housing made of weatherproof plastic
- Quality: Standard
- Receiver system: TWIN (2TN)
- Connections: 2 x F-socket
- Input frequency: 10.70–11.70 GHz (low), 11.70–12.75 GHz (high)
- Output frequency: 950–2150 MHz
- Oscillation frequency: 9.75 GHz (low), 10.60 GHz (high)
- Control function: 0 kHz (low), 22 kHz (high)
- Polarization: Decoupling: > 25 dB
- Power supply: 11.50–19.00 V
- Feed opening: 40 mm
- Material: weatherproof plastic
- Color: anthracite
- HDTV & SDTV satellite receiver
- Pre-programmed channel list (ASTRA 19.2°)
- USB interface for service purposes
- USB interface for connecting external storage media
- Electronic program guide (EPG) with 7-day preview (channel dependent)
- Event timer programming via EPG
- Multifunction timer
- Multilingual on-screen menu
- Complete program list and favorites list
- Teletext with Subtitle function
- Built-in media player for music, pictures and movies
- Signal strength and quality display for optimal satellite dish alignment
- Low power consumption in standby mode
- Supports Unicable DCSS LNB for up to 32 users
- Receiver type: SAT (DVB-S2)
- Display: Indicator light(s)
- Program memory: 3000

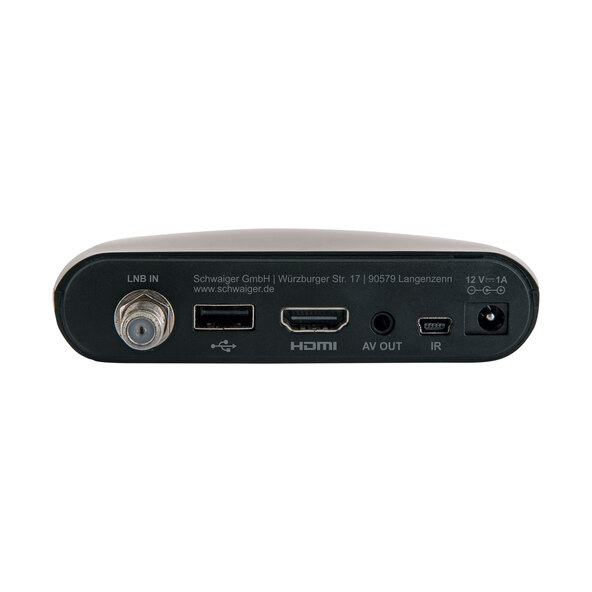

- LNB IN (Type F): 1 x rear
- USB 2.0 port: 1 x rear, 1 x left side of device
- HDMI® port: 1 x rear
- Resolution: 576i/576p/720p/1080i/Full HD 1080p
- Audio/Video output: 1 x rear, digital
- Infrared port: 1 x Back panel
- Control function: DiSEqC 1.0/1.1/1.2/USALS
- Software update via USB
- Languages (menu): German/English/French/Italian/Persian/Turkish
- Favorite lists: 8

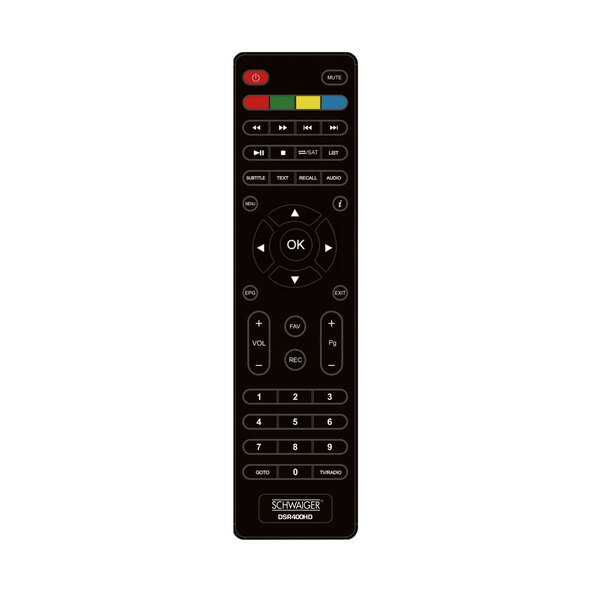

- Includes Remote control
- Input frequency 950–2,150 MHz
- Power consumption: in standby < 0.5 W, in operation < 5 W
- Power supply: 176–264 V AC, 50 Hz
- Color: Black

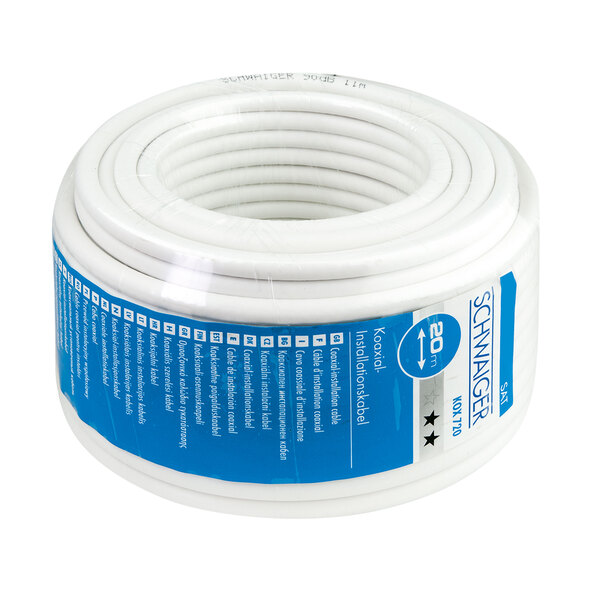

- Triple shielding for additional protection against electromagnetic interference
- High shielding performance
- Moisture-resistant with high long-term stability
- High density and very good insulation properties
- Quality: Professional
- Impedance 75 ohms
- Cable construction 1.02 mm (inner conductor), 4.5 mm (dielectric), 7 mm (sheath)
- Triple Shielded
- Shielding effectiveness 90 dB
- Attenuation at 100 m:
- 4.3 dB up to 50 MHz
- 6.1 dB up to 100 MHz
- 13 dB up to 470 MHz
- 18.5 dB up to 860 MHz
- 21 dB up to 950 MHz
- 27 dB up to 1750 MHz
- 31 dB up to 2150 MHz
- Shielding material: Aluminum composite foil/80-strand aluminum braid/Aluminum composite foil
- Inner conductor: CCS
- Cable length: approx. 20 m
- Material: Plastic
- Classification: Class A
- Color: White

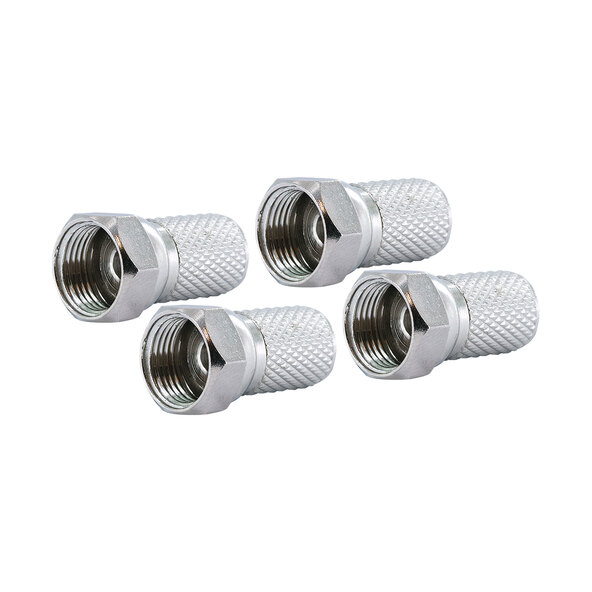

- For installation on a coaxial cable
- Quick and secure connection of connector and cable
- Large, wide nut
- Quality: Standard
- Outer diameter: approx. 7 mm
- Color: Silver

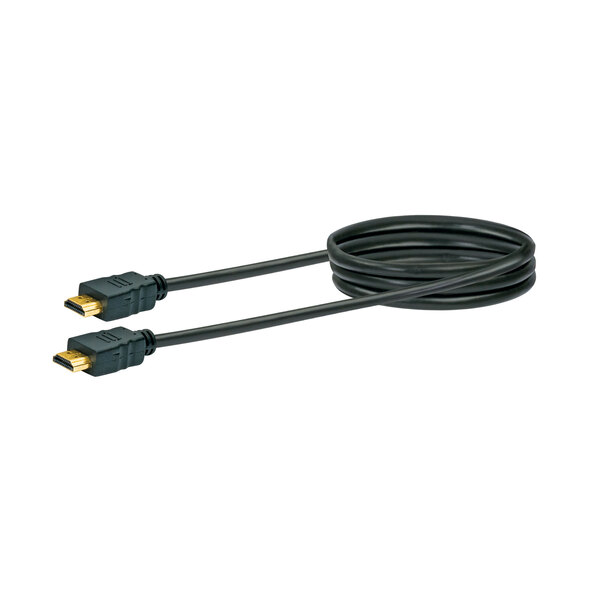

- High-Speed HDMI® cable with Ethernet for high-resolution Ultra HD transmission
- Transmission of network data (up to 100 Mbps) possible via integrated Ethernet channel
- Robust plastic connector with molded strain relief

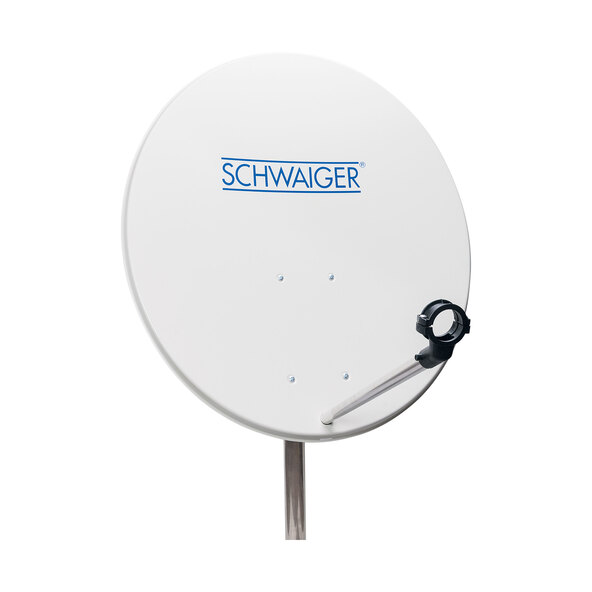

- 3D transmission with a resolution of up to 1080 Connections: 2 x HDMI® connectors; Color: Black; Cable shape: Round; Data transfer rate: 18 Gbit/s; Resolution: 4K (4096 x 2160); Connectors: Injection-molded plastic; Cable length: Approx. 1.3 m; Dimensions/Weight: Satellite receiver, W x H x D: Approx. 22 x 4.5 x 13.5 cm; Approx. 0.181 kg; Twin LNB, W x H x D: Approx. 12.2 x 7.6 x 4.5 cm; Approx. 0.101 kg Steel offset antenna, Ø: approx. 80 cm Approx. 3.493 kg SAT coaxial cable: approx. 20 m Approx. 0.854 kg HDMI cable: approx. 1.3 m Approx. 0.057 kg Scope of delivery: Twin satellite complete system for 2 users Schwaiger Steel offset antenna 2 x Full-HD satellite receivers Remote control for the receivers with jw. 2 AAA 1.5V batteries
- Power adapter for the receiver, 12V DC
- Digital twin LNB with weather protection cap
- SAT coaxial cable
- 2 x High Speed HDMI® cables with Ethernet
- 8 x F-connectors
