Your fast and agile helper

Whether you're a professional or a DIY enthusiast, with your new vibratory plate compactor you'll gain a reliable and easy-to-use helper that will allow you to complete your projects with flying colors.

• Master demanding tasks with a powerful 6.5 hp engine
• Even results thanks to 23,000 N compaction force
• For small and large areas thanks to a plate size of approx. 550 x 440 mm
• Easy handling due to the low weight of your construction machine

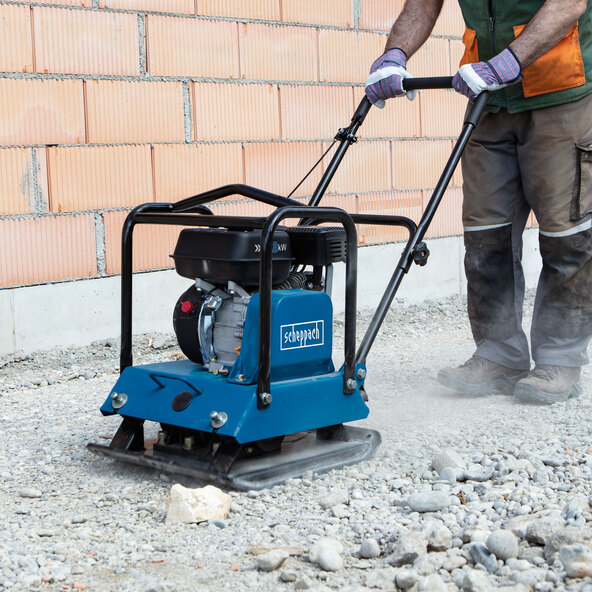

The basis for good work

Ensure a level surface with your Scheppach vibratory plate compactor on which you can then build your projects. For example, create a level surface on which your garden bed will stand stably, or lay even and slip-resistant garden paths. With a slab size of approximately 550 x 440 mm, you remain maneuverable and can even create a level surface in narrow corners. This way, you can be sure that everything stays in place after processing and that you have laid the ideal foundation for further work. Your new construction machine not only flattens surfaces, but also us. Because inside your small machine is a high-performance, gasoline-powered engine that can effectively tackle tasks thanks to its 6.5 hp. The base plate of the Scheppach machine is made of high-strength steel and is pressed into the ground with 23,000 N and a maximum compaction depth of 30 cm. Whether for small gardening jobs or demanding driveways, your Scheppach vibratory plate compactor is becoming a reliable companion for your construction projects.

Features:

• Compact, lightweight, and maneuverable vibratory plate for excellent compaction results
• Ideal for gardeners and landscapers
• Ideal for work around the house, on patios, in the garden, or in front yards
• Base plate made of high-strength steel
• With gasoline engine
• Includes transport wheels for easy transport by one person
• Includes Rubber mat for paving work

Technical data:

• Plate size, L x W: approx. 550 x 440 mm
• Compaction pressure (centrifugal force): 23,000 N
• Max. compaction depth: 30 cm
• Automatic forward speed (feed): 25 m/min.
• Vibration shocks: 4,200 vpm
• Max. permissible tilt of the engine: 25°
• 6.5 hp gasoline engine
• 1-cylinder, 4-stroke for unleaded gasoline
• Displacement 196 cm³
• Engine power: 4.8 kW/6.5 hp
• Fuel capacity: approx. 3.5 l
• Max. Engine oil capacity: 0.6 l
• Exciter oil capacity: approx. 0.35 l

Dimensions/Weight:

• W x H x D: approx. 44 x 93 x 102.5 cm
• Approx. 88 kg

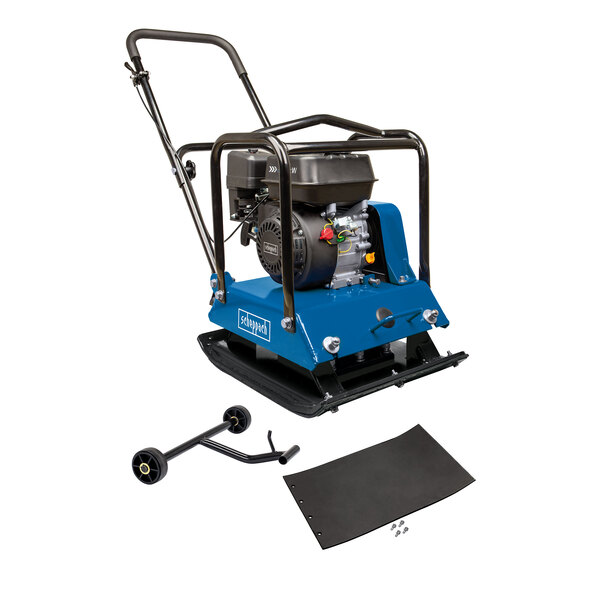

Scope of delivery:

• Sclapper plate Scheppach HP1800S
• 1 rubber mat
• 1 transport device
• 1 spark plug wrench
• Operating instructions

Original operating instructions
